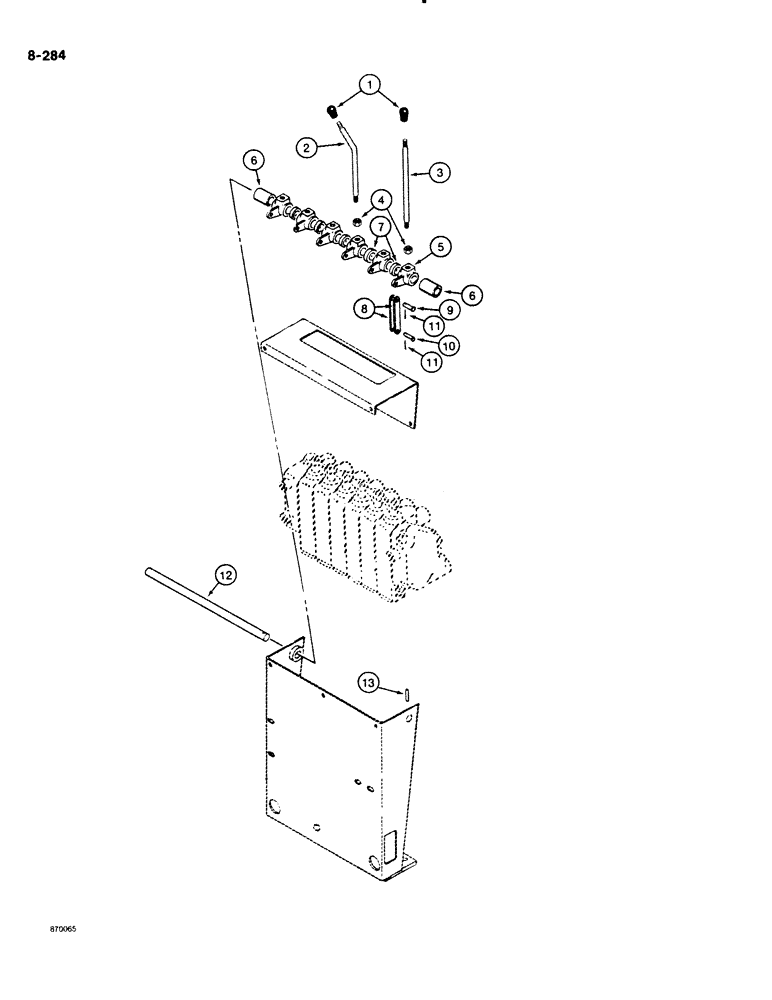

Запчасти Case DH4B (8-284) - FRONT MOUNTED BACKHOE CONTROLS (08) - HYDRAULICS

1

A14051

GRIP

KNOB - backhoe control handles

6шт.

2

H191924

LEVER

CONTROL LEVER - backhoe stabilizers

2шт.

3

H191916

ROD

CONTROL LEVER - backhoe swing, boom, dipper, and bucket

4шт.

4

87016560

JAM NUT,Jam, 3/8"-16, G5

6шт.

5

H275255

CRANK LEVER

BELLCRANK - control lever pivot

6шт.

6

H195099

SPACER

- lever, long

2шт.

7

H191908

SPACER

- lever, short

5шт.

8

H219006

DRAG LINK

LINK - long, lever to control valve

12шт.

9

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64" long

6шт.

10

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

6шт.

11

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

12шт.

12

H50914

LEVER

SHAFT - control levers

1шт.

13

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1-1/8", Slotted

1шт.
