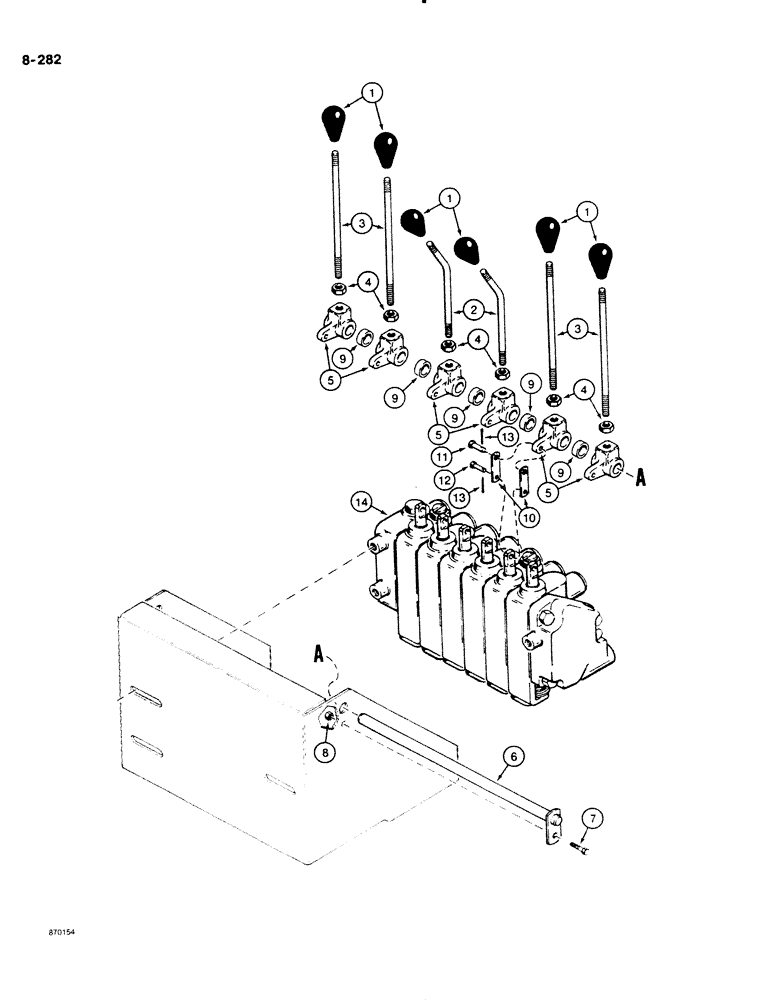

Запчасти Case DH4B (8-282) - REAR MOUNTED BACKHOE CONTROLS, VERTICAL VALVE (08) - HYDRAULICS

1

A14051

GRIP

KNOB - control lever

6шт.

2

H191924

LEVER

CONTROL LEVER - backhoe, stabilizer

2шт.

3

H191916

ROD

CONTROL LEVER - backhoe, boom, swing, dipper (crowd), and bucket

4шт.

4

87016560

JAM NUT,Jam, 3/8"-16, G5

6шт.

5

H275255

CRANK LEVER

BELLCRANK - control lever pivot

6шт.

6

H669192

ROD

SHAFT - control lever pivot

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

9

H191908

SPACER

- control levers

5шт.

10

H185066

DRAG LINK

LINK -, Serial Range: valve-lever

12шт.

11

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - 1/4" x 3/4", special, Serial Range: lever-link

6шт.

12

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - 3/16" x 57/64", Serial Range: link-valve

6шт.

13

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

12шт.

14

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, parts list Figure 8-336

1шт.
