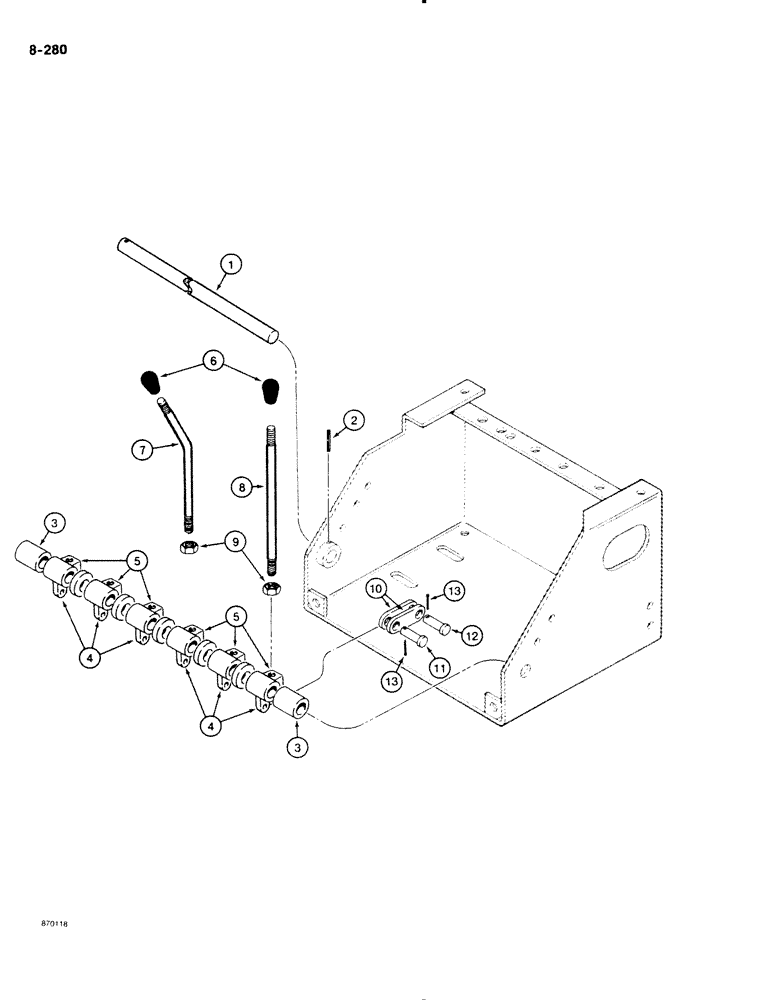

Запчасти Case DH4B (8-280) - REAR MOUNTED BACKHOE CONTROLS, HORIZONTAL VALVE (08) - HYDRAULICS

1

H382317

SHAFT

- bellcrank

1шт.

2

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

3

H195099

SPACER

- bellcrank, long

2шт.

4

H275263

LEVER

BELLCRANK - control lever pivot

6шт.

5

H191908

SPACER

- bellcrank, short

5шт.

6

A14051

GRIP

KNOB - backhoe control levers

6шт.

7

H191924

LEVER

CONTROL LEVER - backhoe, stabilzer

2шт.

8

H191916

ROD

CONTROL LEVER - backhoe, boom, swing, dipper (crowd), and bucket

4шт.

9

87016560

JAM NUT,Jam, 3/8"-16, G5

6шт.

10

H379057

LINK

- bellcrank to control valve

12шт.

11

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64" long

6шт.

12

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

6шт.

13

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

12шт.
