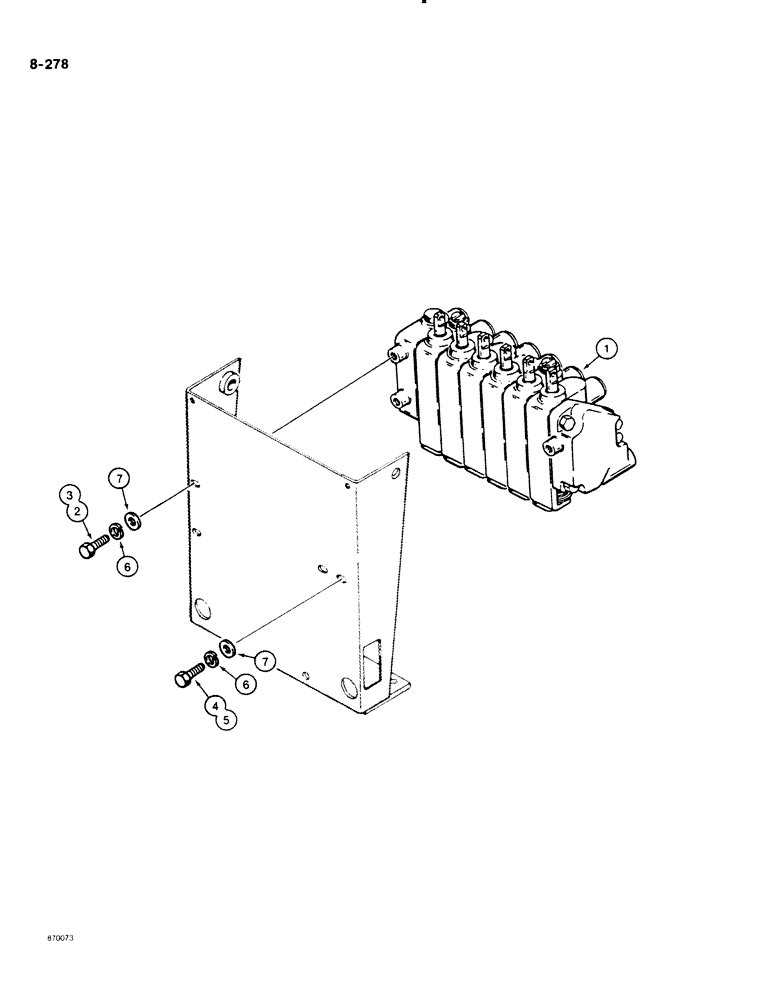

Запчасти Case DH4B (8-278) - FRONT MOUNTED BACKHOE CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, parts list figure and special notes 8-337

1шт.

2

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Used on models with standard backhoe controls Hex, 7/16"-14 x 1", G5, Full Thd

2шт.

3

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Used on models with dual lever controls Hex, 7/16"-14 x 1 1/2", G5

2шт.

4

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

Used on models with standard controls Hex, 7/16"-14 x 1 1/4", G5

1шт.

5

113-323

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Used on models with dual lever controls Hex, 7/16"-14 x 1 3/4", G5

1шт.

6

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

7

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

3шт.
