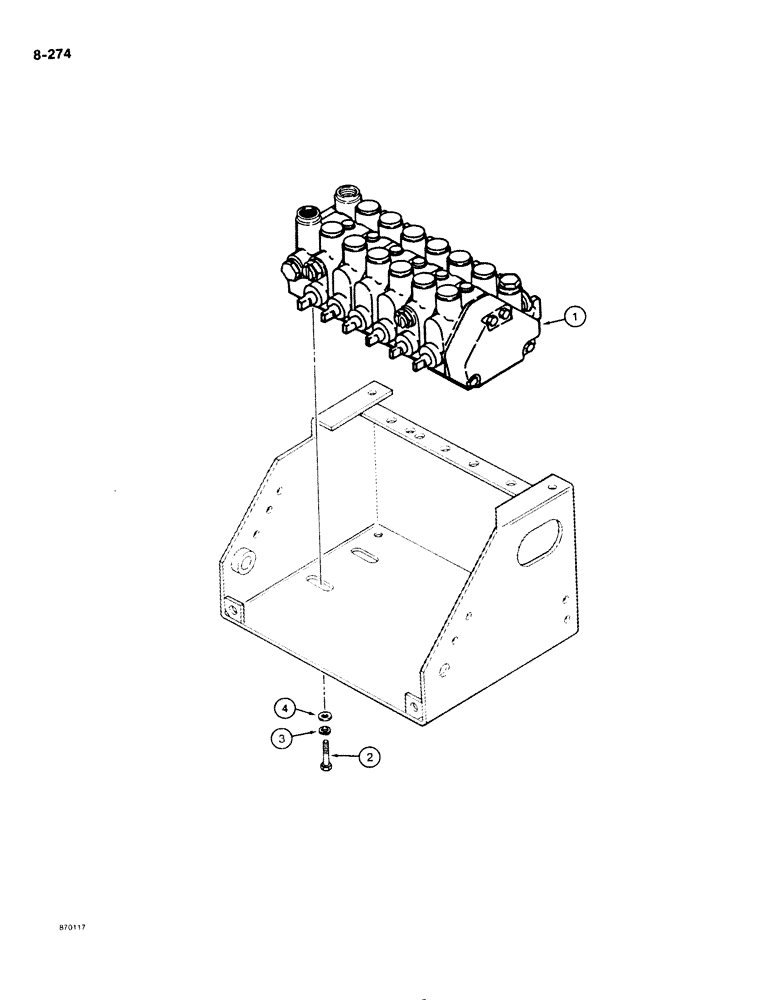

Запчасти Case DH4B (8-274) - REAR MOUNTED HORIZONTAL BACKHOE CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

H513788

LOCK VALVE

CONTROL VALVE ASSEMBLY - backhoe, parts list and special notes Figure 8-336

1шт.

2

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

3шт.

3

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

4

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

3шт.
