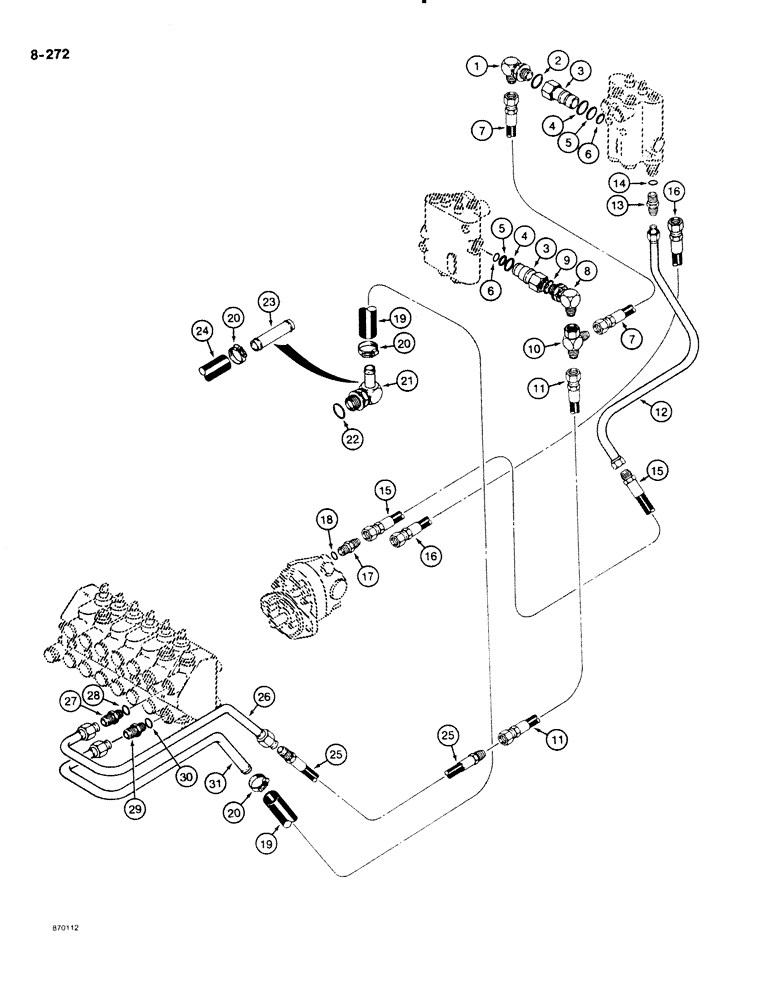

Запчасти Case DH4B (8-272) - FRONT MOUNTED BACKHOE SUPPLY AND RETURN LINES, MODELS WITH BACKFILL BLADE (08) - HYDRAULICS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 2

1шт.

H347906

FITTING

ADAPTER ASEMBLY - special, power beyond, Includes: Ref. 3-6

2шт.

3

NSS

NOT SOLD SEPARAT

ADAPTER - special, power beyond, order H347906 adapter assembly

1шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter, large, 5/8" (16 mm) ID

1шт.

5

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

6

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- adapter, small, 1/2" (13 mm) ID

1шт.

7

H195750

HYDRAULIC HOSE,9.52 mm ID x 355.60 mm, SAE 100R1

Elbow to Tee 9.52 mm ID x 355.60 mm, SAE 100R1

1шт.

8

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 9

1шт.

10

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

- swivel

1шт.

11

H352575

HOSE,0.50" ID x 34.00, SAE 100R2A

Tee to Backhoe Control Valve Supply Hose 0.50" ID x 34.00, SAE 100R2A

1шт.

12

H416081

TUBE ASSY.,12.7 mm OD

TUBE - backfill blade control valve, if used

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 14

1шт.

15

H190041

HYDRAULIC HOSE,9.52 mm ID x 457.20 mm, SAE 100R1

9.52 mm ID x 457.20 mm, Steering Pump to Tube, Used with H416081 Tube, If Used

1шт.

16

H323857

HOSE ASSY.

HOSE - 94" (2388 mm) long, steering pump to backfill blade control valve, if used

1шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 18

1шт.

19

H433227

HOSE

- 3/4" (19 mm) ID x 149-5/8" (3800 mm) long, backhoe control valve to trencher or plow motor case drain, cut from H373639 bulk hose, see below

1шт.

20

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2-3шт.

21

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - 90 degree, adjustable, Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

23

H419325

CONNECTOR, ELEC,19 mm OD x 100 mm L

STEM FITTING - straight, special, used on models with plow

1шт.

24

H337915

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 103" (2616 mm) long, backhoe control valve hose to plow motor case drain, cut from 180720C2 bulk hose, see below

1шт.

25

H433228

HOSE ASSY.

HOSE - 118" (3000 mm) long, backhoe control valve supply

1шт.

26

H646679

TUBE,15.9 mm OD

- backhoe control valve supply

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Connector

1шт.

29

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

31

H646687

TUBE,19.05 mm OD

- backhoe control valve to return lines

1шт.

H373639

HOSE ASSY.

HOSE - bulk, 3/4" (19 mm) ID x 180" (4572 mm) long, use to make ref. 19

1шт.

180720C2

HOSE ASSY.

HOSE - bulk length, 3/4" (19 mm) ID x 25 ft (762 cm) long, used to make ref. 24

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.
