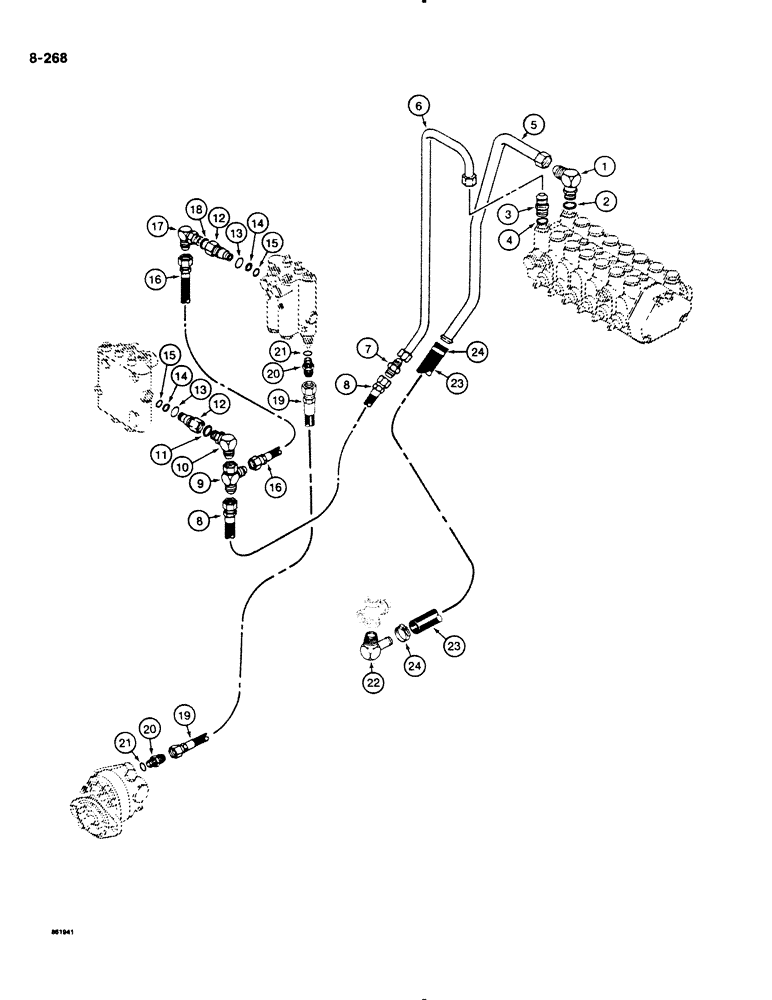

Запчасти Case DH4B (8-268) - REAR MOUNTED BACKHOE SUPPLY AND RETURN LINES, HORIZONTAL BACKHOE CONTROL VALVE (08) - HYDRAULICS

1

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, Includes: Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Connector

1шт.

5

H645044

TUBE ASSY.,19.05 mm OD

TUBE - return, backhoe control valve

1шт.

6

H645051

TUBE ASSY.,15.88 mm OD

TUBE - supply, backhoe control valve

1шт.

7

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight

1шт.

8

H352575

HOSE,0.50" ID x 34.00, SAE 100R2A

Supply Tube to Tee 0.50" ID x 34.00, SAE 100R2A

1шт.

9

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

- swivel

1шт.

10

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 11

1шт.

H347906

FITTING

ADAPTER ASSEMBLY - special, power beyond, Includes: Ref. 12-15

2шт.

12

NSS

NOT SOLD SEPARAT

ADAPTER - special, power beyond, order H347906 adapter assembly

1шт.

13

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter, large, 5/8" (16 mm) ID

1шт.

14

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

15

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- adapter, small, 1/2" (13 mm) ID

1шт.

16

H195750

HYDRAULIC HOSE,9.52 mm ID x 355.60 mm, SAE 100R1

9.52 mm ID x 355.60 mm, Tee to Backfill Control Valve

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 18

1шт.

18

28-5006

O-RING - elbow

1шт.

19

H323857

HOSE ASSY.

HOSE - 94" (2388 mm) long, steering pump to backfill control valve

1шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 21

2шт.

22

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degree

1шт.

23

H317313

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 28" (711 mm) long, see Parts Substitution List for bulk hose options

1шт.

24

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.
