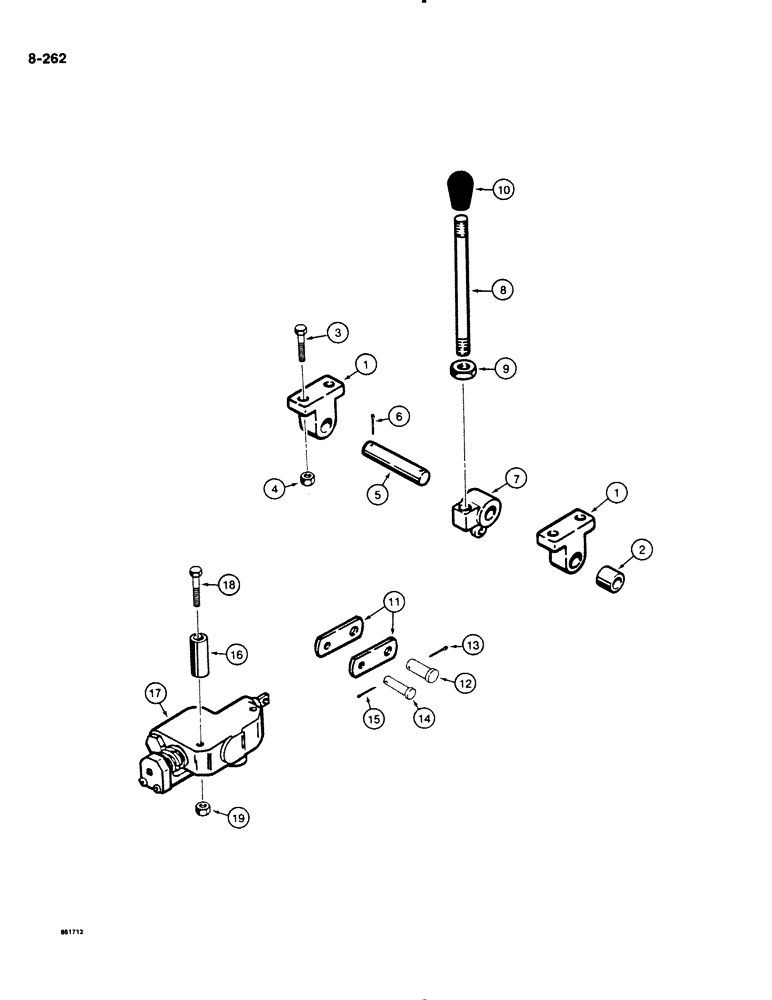

Запчасти Case DH4B (8-262) - HYDRA-BORER CONTROLS AND CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

H558411

BEARING

ASSEMBLY - hydra-borer control shaft, Includes: Ref. 2

2шт.

2

H151894

BUSHING

- bearing

1шт.

3

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

5

H262501

SHAFT

- hydra-borer control

1шт.

6

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

H275263

LEVER

- hydra-borer control handle

1шт.

8

H191916

ROD

HANDLE - hydra-borer control lever

1шт.

9

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

10

A14051

GRIP

KNOB - hydra-borer control lever

1шт.

11

H379057

LINK

- control lever to control valve

2шт.

12

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long

1шт.

13

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

14

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

1шт.

15

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

16

H253005

SPACER

- hydra-borer control valve

1шт.

17

H544718

LOCK VALVE

CONTROL VALVE - one spool, hydra-borer, parts list Figure 8-266

1шт.

18

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex head, 5/16" - 18 NC x 4-1/2", plated

2шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.
