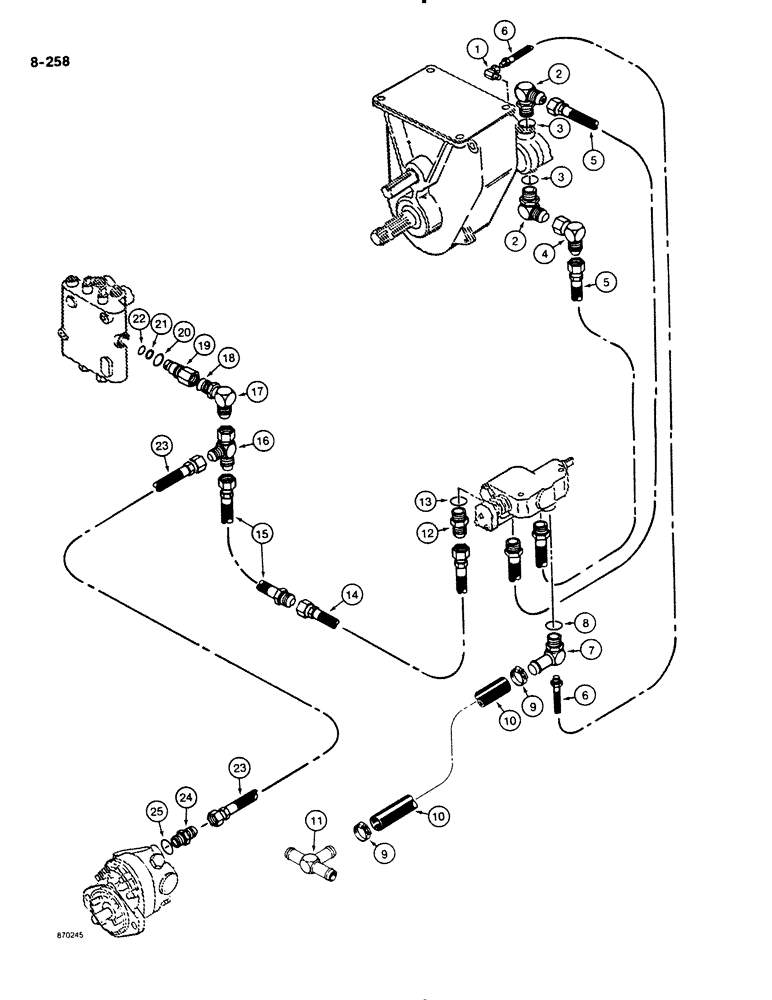

Запчасти Case DH4B (8-258) - HYDRA-BORER HYDRAULIC CIRCUIT, WITHOUT BACKHOE OR BACKFILL BLADE (08) - HYDRAULICS

1

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degree, swivel

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

4

218-5332

ELBOW,45 Degree, 1 1/16"-12 O-Ring x 1/2" NPSM Fem

STREET ELBOW - 90 degree, swivel

1шт.

5

H91892

HOSE,0.50" ID x 48.00", SAE 100R1

2шт.

6

H88575

HOSE,0.25" ID x 48.00", SAE 100R3

Case Drain from Motor 0.25" ID x 48.00", SAE 100R3

1шт.

7

H317438

FITTING

ELBOW - 90 degree, special, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

10

H338095

HOSE

- 3/4" (19 mm) ID x 61" (1549 mm) long, return, see Parts Substitution List for bulk hose options

1шт.

11

H377408

TEE

- special

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Connector

1шт.

14

H202572

HYDRAULIC HOSE,12.70 mm ID x 914.40 mm, SAE 100R1

From Hose to Hydra-Borer Valve 12.70 mm ID x 914.40 mm, SAE 100R1

1шт.

15

H352575

HOSE,0.50" ID x 34.00, SAE 100R2A

from Steering Valve to Hose 0.50" ID x 34.00, SAE 100R2A

1шт.

16

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

- swivel

1шт.

17

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 18

1шт.

H347906

FITTING

ADAPTER ASSEMBLY - special, power beyond, Includes: Ref. 19-22

1шт.

19

NSS

NOT SOLD SEPARAT

ADAPTER - special, power beyond, order H347906 adapter assembly

1шт.

20

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- adapter, large, 5/8" (16 mm) ID

1шт.

21

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - small O-ring

1шт.

22

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- adapter, small, 1/2" (13 mm) ID

1шт.

23

D51685

HOSE

- 66" (1676 mm) long, steering, Serial Range: pump-valve

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 25

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.
