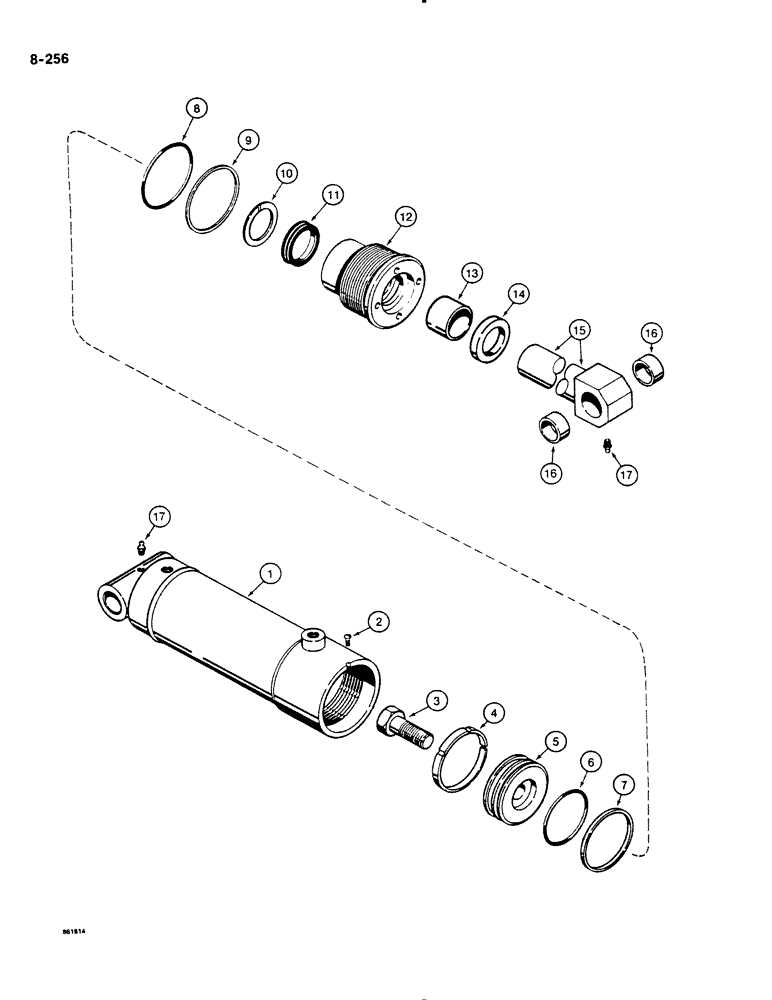

Запчасти Case DH4B (8-256) - PLOW AND REEL CARRIER LIFT CYLINDER (08) - HYDRAULICS

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

ASSEMBLY - 3" (76 mm) ID x 7" (178 mm) stroke, plow and reel carrier lift, Includes: Ref. 1-17

2-4шт.

1

G32061

HYD TUBE,13.57" L

TUBE - cylinder

1шт.

2

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8"

1шт.

3

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

4

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

1шт.

Part of Seal Kit, P/N G34656

1шт.

5

G104107

PISTON

ASSEMBLY - cylinder, double groove

1шт.

6

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit, P/N G34656

1шт.

7

G32034

RING

BACKUP RING - piston O-ring

1шт.

Part of Seal Kit, P/N G34656

1шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 8-14

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G34656

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G34656

1шт.

10

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, piston rod

1шт.

Part of Seal Kit, P/N G34656

1шт.

11

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit, P/N G34656

1шт.

11

G100776

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND - cylinder, order G104222 gland assembly

1шт.

13

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of Seal Kit, P/N G34656

1шт.

14

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G34656

1шт.

G33749

ROD

ASSEMBLY - piston, Includes: Ref. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

ROD - piston, order G33749 rod assembly

1шт.

16

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G34656

SEAL

KIT - seal, includes Refs. 4, 6, - 11, 13 and 14

1шт.
