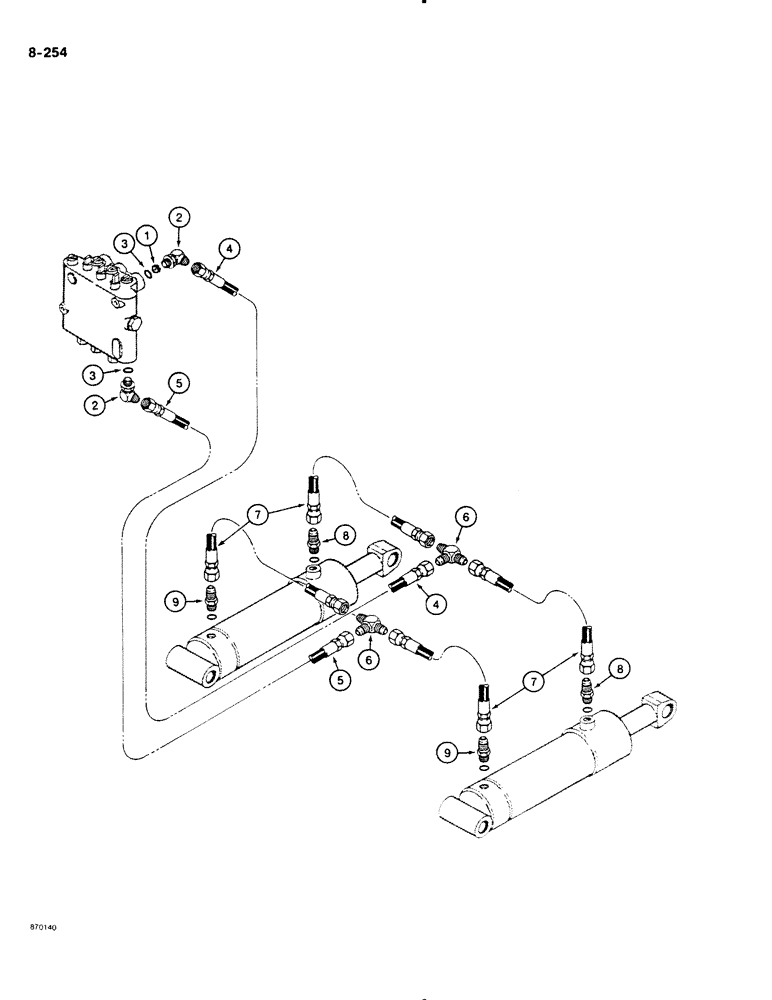

Запчасти Case DH4B (8-254) - PLOW LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H746875

SCREW

RESTRICTOR - special, .043" (1.09 mm) orifice

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, if used, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

Plow Lift Cylinder Rod End to Control Valve 6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

5

H218453

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1

Plow Lift Cylinder Closed End to Control Valve 6.35 mm ID x 838.20 mm, SAE 100R1

1шт.

6

218-593

TEE,9/16"-18, 37 Degree

- male

2шт.

7

D81836

HOSE

- 16" (406 mm) long, tee to plow lift cylinders

4шт.

8

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

2шт.

9

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

2шт.
