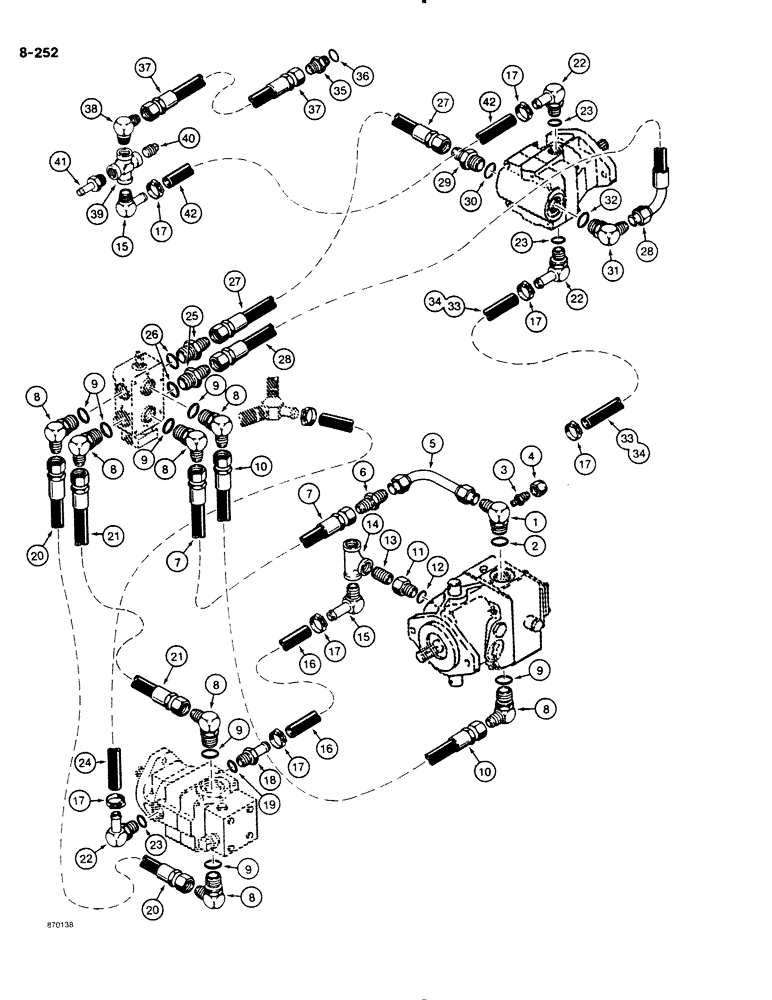

Запчасти Case DH4B (8-252) - PLOW DRIVE HYDRAULIC CIRCUIT, MODELS WITH TRENCHER (08) - HYDRAULICS

1

H219568

ADAPTER

ELBOW - 90 degree, adjustable, special, Includes: Ref. 2

1шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

3

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight

1шт.

4

218-755

CAP,37 Degree, 3/4"-16

1шт.

5

H421362

TUBE ASSY.,19 mm OD x 105, 38 mm L

TUBE - attachment drive pump, elbow to connector

1шт.

6

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight

1шт.

7

H388215

HOSE ASSY.

HOSE - 24" (610 mm) long, attachment drive pump to selector valve

1шт.

8

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 9

7шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

10

H388207

HOSE ASSY.

HOSE - 22" (560 mm) long, attachment drive pump to selector valve

1шт.

11

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

13

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - 3/4" NPT x 1-3/8"

1шт.

14

221-1425

TEE,Pipe, 3/4" NPT

- 3/4" NPT, see figure 8-199 for hydraulic lines from tee to reservoir

1шт.

15

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degree

2шт.

16

H309039

LARGE HOSE

HOSE - 3/4" (19 mm) ID x 39" (991 mm) long, return, see Parts Substituion List for bulk hose options

1шт.

17

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

8шт.

18

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - straight, Includes: Ref. 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

20

H388215

HOSE ASSY.

HOSE - 24" (610 mm) long, selector valve to trencher drove motor "A" port

1шт.

21

H388207

HOSE ASSY.

HOSE - 22" (560 mm) long, selector valve to trencher drive motor "B" port

1шт.

22

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - 90 degree, adjustable, Incl. Ref. 23

3шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

24

H307769

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 42" (1067 mm) long, return, see Parts Substitution List for bulk hose options

1шт.

25

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 26

2шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

27

H373613

HOSE

- 138" (3500 mm) long, selector valve "F" port to plow drive motor

1шт.

28

H373621

HOSE

- 143-11/16" (3650 mm) long, selector valve "E" port to plow drive motor

1шт.

29

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 30

1шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

31

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

33

H353516

HOSE

- 3/4" (19 mm) ID x 96" (2438 mm) long, backfill blade control valve to plow motor, see Part Substituion List for bulk hose options, if used

1шт.

34

H337915

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 103" (2616 mm) long, steering control valve or hydra-borer control valve to motor plow motor, see Parts Substitution List for bulk hose options, if used

1шт.

35

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 36

1шт.

37

H323857

HOSE ASSY.

HOSE - 94" (2388 mm) long, steering pump to elbow, used on models with trencher/plow and without backfill

1шт.

38

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree

1шт.

39

221-1505

CROSS

- 3/4" NPT

1шт.

40

221-48

PLUG

- square head, 3/4" NPT, if used

1шт.

41

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - straight

1шт.

42

H341362

HOSE

- 3/4" (19 mm) ID x 30" (762 mm) long, return, see Parts Substitution List for bulk hose options

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.
