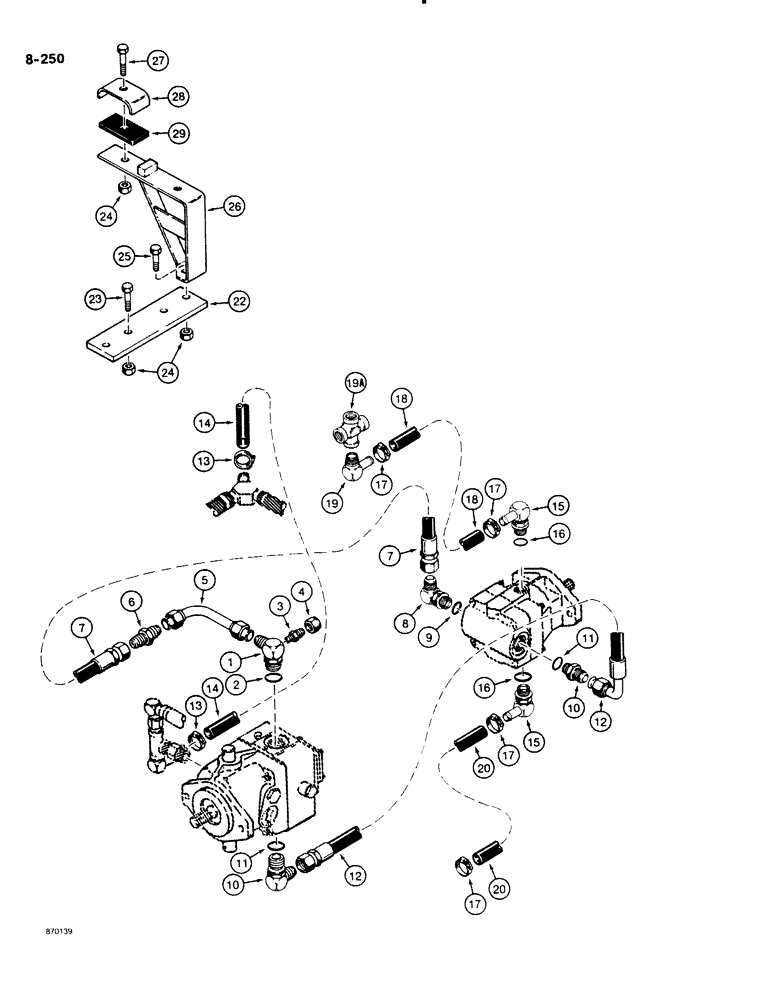

Запчасти Case DH4B (8-250) - PLOW DRIVE HYDRAULIC CIRCUIT, MODELS WITHOUT TRENCHER (08) - HYDRAULICS

1

H219568

ADAPTER

ELBOW - 90 degree, adjustable, Includes: Ref. 2

1шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

3

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight

1шт.

4

218-755

CAP,37 Degree, 3/4"-16

1шт.

5

H421362

TUBE ASSY.,19 mm OD x 105, 38 mm L

TUBE - attachment drive pump, elbow to connector

1шт.

6

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight

1шт.

7

H373613

HOSE

- 138" (2500 mm) long, attachment drive pump to plow motor

1шт.

8

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 9

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 11

2шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

12

H373621

HOSE

- 143-11/16" (3650 mm) long, attachment drive pump to plow motor

1шт.

13

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

14

H317321

HOSE

- 3/4" (19 mm) ID x 13" (330 mm) long, return, see Parts Substitution List for bulk hose options

1шт.

15

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - 90 degree, adjustable, Incl. Ref. 16

2шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

17

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

5шт.

18

H341362

HOSE

- 3/4" (19 mm) ID x 30" (762 mm) long, plow motor to cross, see Parts Substitution List for bulk hose options

1шт.

19

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degree

1шт.

19a

221-1505

CROSS

- 3/4" NPT

1шт.

20

H337915

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 103" (2616 mm) long, return

1шт.

21

H419325

CONNECTOR, ELEC,19 mm OD x 100 mm L

TUBE - hose connector, used with backfill - backhoe and plow combination

1шт.

22

H388553

PLATE

- hose bracket

1шт.

23

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

24

131-412

NUT - hex, special, locking, 1/2" - 13 NC

5шт.

25

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

26

H629295

BRACKET

- hose

1шт.

27

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

28

H231878

CLAMP

- hose

2шт.

29

H231860

COVER

PAD - clamp

2шт.
