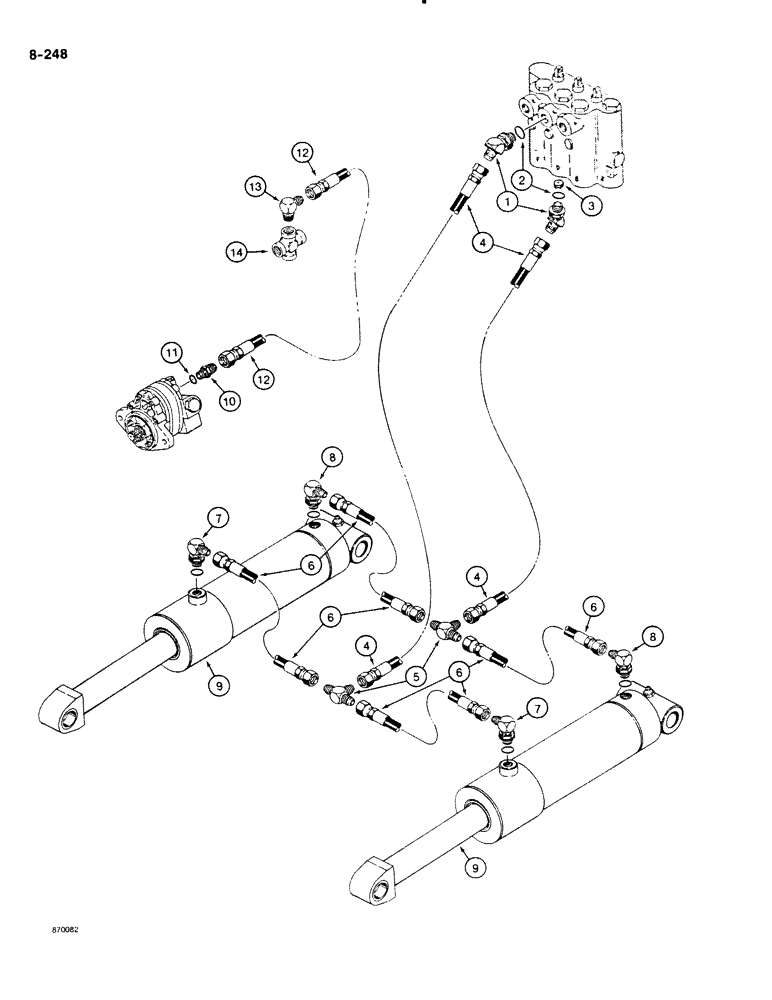

Запчасти Case DH4B (8-248) - REEL CARRIER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 2

2шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

3

H746875

SCREW

RESTRICTOR - special, .043" (1.09 mm) orifice

1шт.

4

H373647

HOSE

- 130" (3300 mm) long, control, Serial Range: valve-tee

2шт.

5

218-593

TEE,9/16"-18, 37 Degree

- male

2шт.

6

D81836

HOSE

- 16" (406 mm) long, tee to reel carrier lift cylinders

4шт.

7

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

2шт.

8

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

2шт.

9

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

ASSEMBLY - reel carrier lift, parts list Figure 8-256

2шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 11

1шт.

12

H323857

HOSE ASSY.

HOSE - 94" (2388 mm) long, steering pump to hydraulic oil reservoir

1шт.

13

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree

1шт.

14

221-1505

CROSS

- 3/4" NPT

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.
