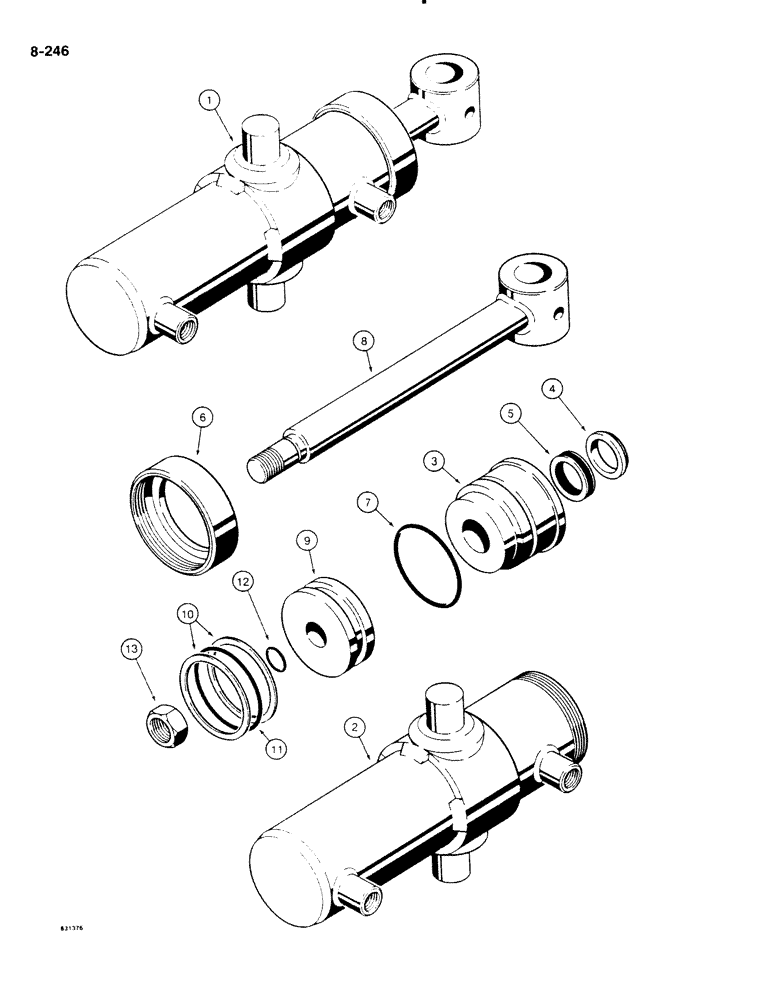

Запчасти Case DH4B (8-246) - BACKFILL BLADE ANGLE CYLINDER, REAR MOUNTED WITH REAR PLOW (08) - HYDRAULICS

1

H583542

CYLINDER BLOCK

CYLINDER ASSEMBLY - 2-1/2" (64 mm) ID x 5-1/8", (130 mm) stroke, Lantex No. 2218-BL, backfill blade angle, rear mounted with rear plow, Includes: Ref. 2-13

2шт.

2

H591271

TUBE ASSY.

TUBE - cylinder

1шт.

3

H274035

GLAND

- cylinder

1шт.

4

H755793

RETAINER

WIPER - rod

1шт.

Part of Seal Kit, P/N H591255

1шт.

5

N8395

SEAL ASSY.

SEAL - piston rod, gland inner

1шт.

Part of Seal Kit, P/N H591255

1шт.

6

H232116

COLLAR

NUT - gland retaining

1шт.

7

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- gland, outer

1шт.

Part of Seal Kit, P/N H591255

1шт.

8

H591263

ROD

- piston, 1" (25 mm) diameter

1шт.

9

H247023

PISTON

- cylinder

1шт.

10

A35810

RING

BACKUP RING - piston seal, outer

2шт.

Part of Seal Kit, P/N H591255

1шт.

11

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

SEAL - piston, outer

1шт.

Part of Seal Kit, P/N H591255

1шт.

12

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- piston, inner

1шт.

Part of Seal Kit, P/N H591255

1шт.

13

230-46112

LOCK NUT,3/4"-16, GA

NUT - hex, slef-locking, 3/4" - 16 NF

1шт.

H591255

SEAL

KIT - seal repair, includes Refs. 4, 5, 7, 10, 11 and 12

1шт.
