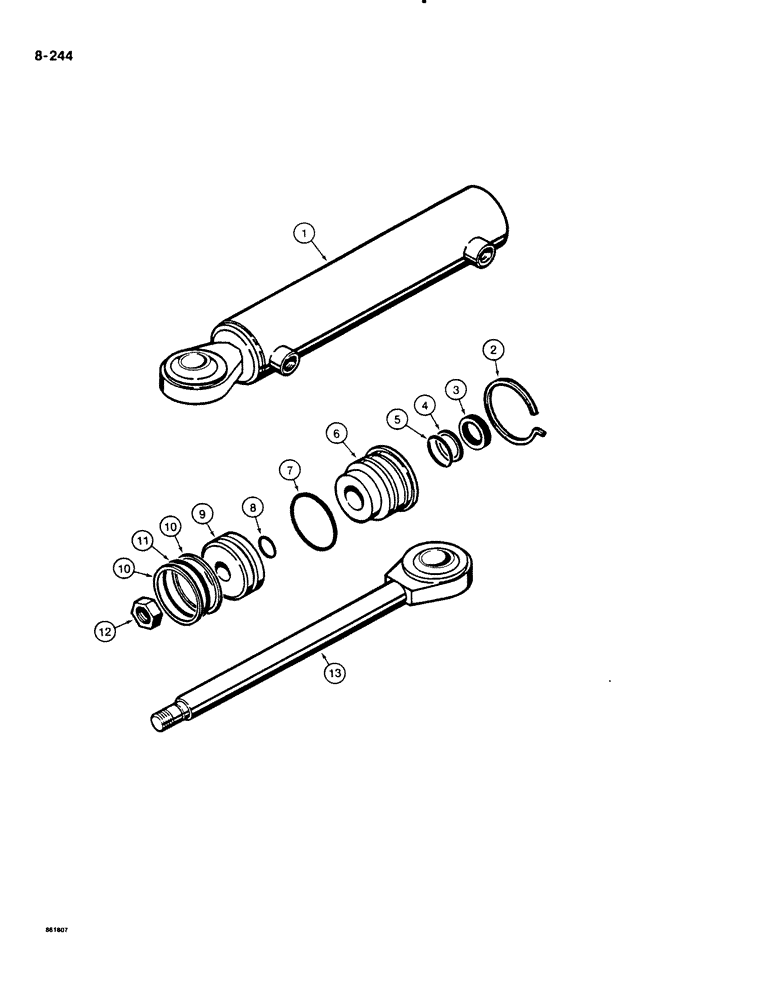

Запчасти Case DH4B (8-244) - BACKFILL BLADE ANGLE CYLINDER, 4-WAY/6-WAY (08) - HYDRAULICS

H672379

CYLINDER BLOCK

CYLINDER ASSEMBLY - backfill blade angle, 4-way/6-way, 2-1/2" (63.5 mm) ID x 6-5/16" (160 mm), Lantex No. 5538-TM, Includes: Ref. 1-13

1шт.

1

N8335

TUBE ASSY.

TUBE - cylinder

2шт.

2

H207027

LOCK ASSY

RETAINING RING - gland

1шт.

3

H223271

WIPER SEAL

WIPER - piston rod

1шт.

4

T22277

OIL SEAL

BACKUP RING - rod O-ring

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder, order H672379 cylinder assembly

1шт.

7

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- gland, outer

1шт.

8

A59956

O-RING,0.739" ID x 0.879" OD

- piston rod end

1шт.

9

N8334

PISTON

- cylinder

1шт.

10

A35810

RING

BACKUP RING - piston seal

2шт.

11

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

SEAL - piston

1шт.

12

131-1252

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

13

N8336

ROD ASSY.

ROD - piston

1шт.
