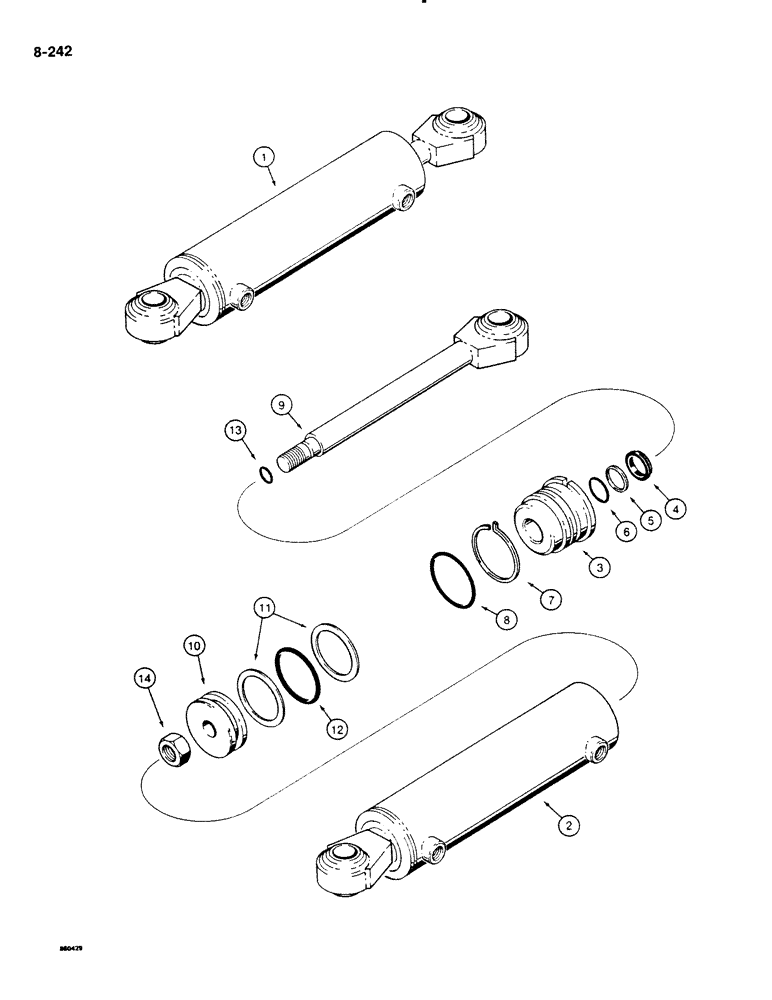

Запчасти Case DH4B (8-242) - BACKFILL BLADE LIFT CYLINDER, REAR MOUNTED WITH REAR PLOW (08) - HYDRAULICS

1

H621367

CYLINDER BLOCK

CYLINDER ASSEMBLY - 2-3/8" (60 mm) ID x 8" (203 mm) stroke, Lantex No. 3533-TM, backfill lift, rear mounted with rear plow, Includes: Ref. 2-14

1шт.

2

H630160

CYLINDER

TUBE - cylinder

1шт.

3

H347765

GLAND

- cylinder

1шт.

4

H755793

RETAINER

WIPER - rod

1шт.

Part of Seal Kit, P/N H630186

1шт.

5

A35899

RING

BACKUP RING - small O-ring, gland inner, piston rod

1шт.

Part of Seal Kit, P/N H630186

1шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- small, gland inner, piston rod

1шт.

Part of Seal Kit, P/N H630186

1шт.

7

H207027

LOCK ASSY

RING - gland locking wire

1шт.

Part of Seal Kit, P/N H630186

1шт.

8

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- gland, outer

1шт.

Part of Seal Kit, P/N H630186

1шт.

9

H630178

ROD

- piston, 1" (25 mm) diameter

1шт.

10

H347757

PISTON

- cylinder

1шт.

11

B17300

O-RING

BACKUP RING - piston seal, outer

2шт.

Part of Seal Kit, P/N H630186

1шт.

12

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

SEAL - piston, outer

1шт.

Part of Seal Kit, P/N H630186

1шт.

13

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- piston, inner, rod

1шт.

Part of Seal Kit, P/N H630186

1шт.

14

131-172

LOCK NUT,3/4"-16, GA

NUT - hex, self locking, 3/4" - 16 NF, plated

1шт.

H630186

GASKET KIT

KIT - seal, includes Refs. 4-8 and 11-13

1шт.
