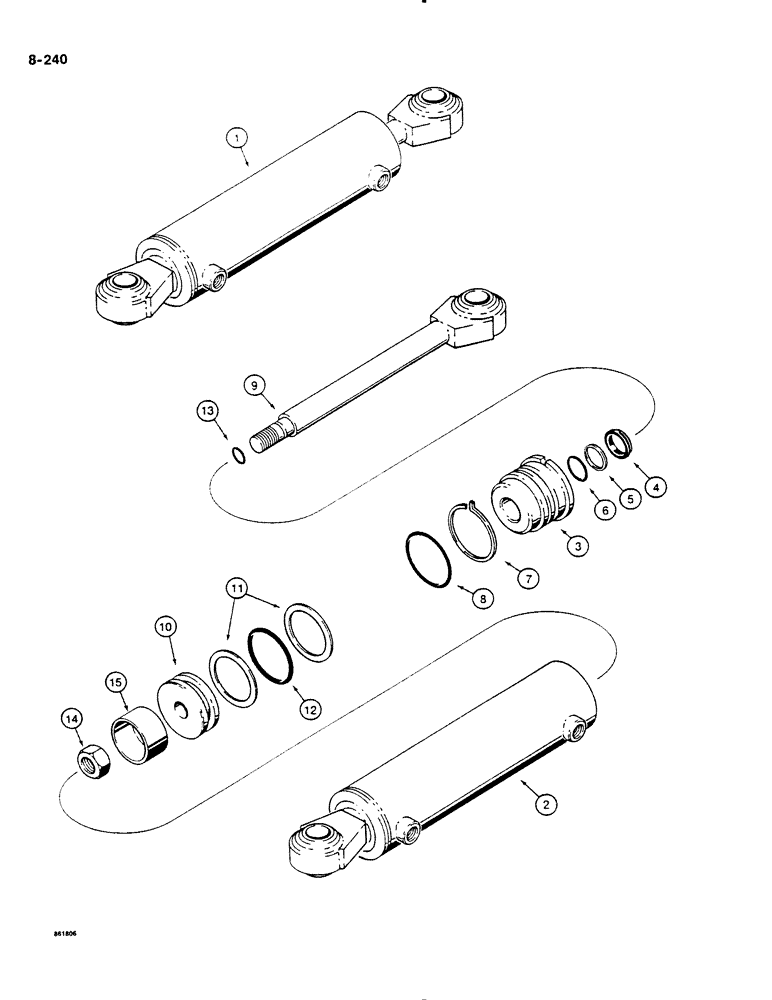

Запчасти Case DH4B (8-240) - BACKFILL BLADE LIFT CYLINDER, 4-WAY/6-WAY (08) - HYDRAULICS

H666883

CYLINDER ASSY.

CYLINDER ASSEMBLY - backfill blade lift, 4-way/6-way, includes H624528 cylinder assembly and H424259 spacer, Includes: Ref. 1-15

1шт.

1

H624528

STEERING CYLINDER

CYLINDER ASEMBLY - 2-3/8" (60.5 mm) ID x 5.0" (127 mm) stroke, Lantex No. 3006-TM, backfill blade lift, 4-way/6-way, Includes: Ref. 2-14

1шт.

2

H636845

CYLINDER

TUBE - cylinder

1шт.

3

H347765

GLAND

- cylinder

1шт.

4

H755793

RETAINER

WIPER - rod

1шт.

Part of Seal Kit, P/N H630186

1шт.

5

A35899

RING

BACKUP RING - small O-ring, gland inner, piston rod

1шт.

Part of Seal Kit, P/N H630186

1шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- small

1шт.

Part of Seal Kit, P/N H630186

1шт.

7

H207027

LOCK ASSY

WIRE - gland locking

1шт.

Part of Seal Kit, P/N H630186

1шт.

8

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- gland, outer

1шт.

Part of Seal Kit, P/N H630186

1шт.

9

H636852

PISTON ROD

ROD - piston, 1" (25.4 mm) diameter

1шт.

10

H347757

PISTON

- cylinder

1шт.

11

BACKUP RING - piston seal, outer

2шт.

Part of Seal Kit, P/N H630186

1шт.

12

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

SEAL - piston, outer

1шт.

Part of Seal Kit, P/N H630186

1шт.

13

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- piston, inner, rod

1шт.

Part of Seal Kit, P/N H630186

1шт.

14

131-172

LOCK NUT,3/4"-16, GA

NUT - hex, self-locking, 3/4" - 16 NF, plated

1шт.

15

H424259

SPACER

- piston

1шт.

H630186

GASKET KIT

KIT - seal, includes Refs. 4-8, and 11-13

1шт.
