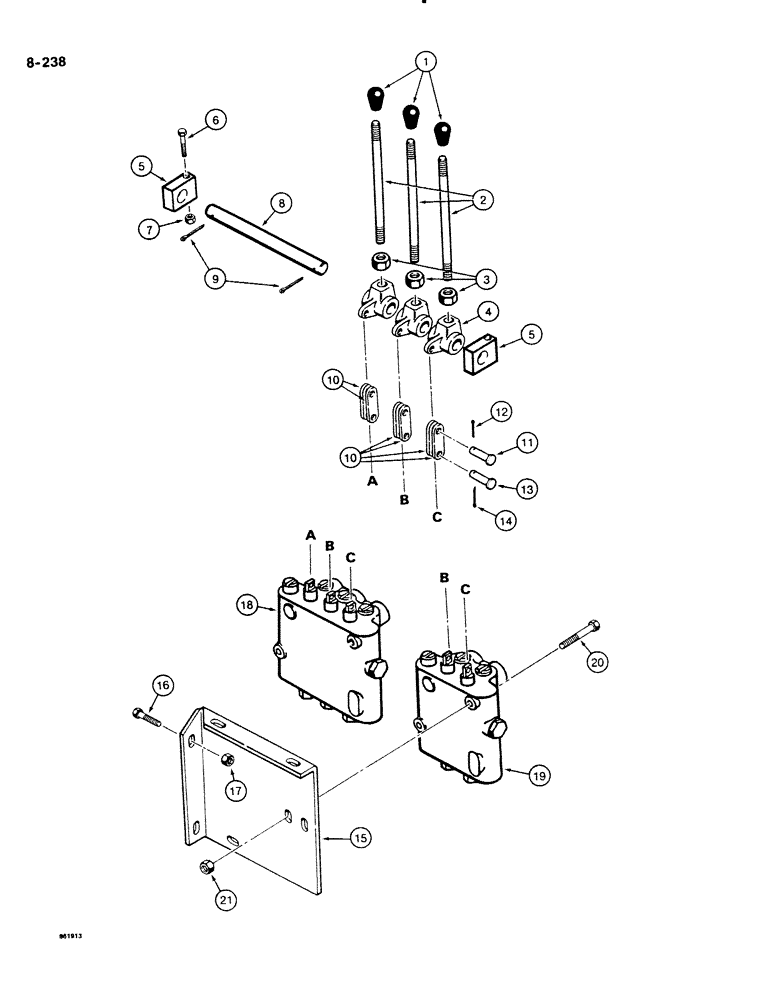

Запчасти Case DH4B (8-238) - BACKFILL BLADE CONTROLS AND VALVE MOUNTING (08) - HYDRAULICS

1

A14051

GRIP

KNOB - backfill blade control handle

2-3шт.

2

H191924

LEVER

HANDLE - backfill blade control lever

2-3шт.

3

87016560

JAM NUT,Jam, 3/8"-16, G5

2-3шт.

4

H275255

CRANK LEVER

LEVER - control handle

2-3шт.

5

H426411

BEARING

BLOCK - bearing, shaft

2шт.

6

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

8

H262436

SHAFT

- backfill blade control

1шт.

9

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

10

H196857

LINK

- control, Serial Range: lever-valve

4-6шт.

11

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long

2-3шт.

12

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2-3шт.

13

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

2-3шт.

14

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2-3шт.

15

H382507

SHEET

PLATED - backfill blade control valve mounting

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

17

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

18

H641050

LOCK VALVE

CONTROL VALVE ASSEMBLY - backfill blade, two-spool, parts list Figure 5-126

1шт.

19

H656454

VALVE

CONTROL VALVE ASSEMBLY - backfill blade, two-spool, parts list Figure 5-124

1шт.

20

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

21

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.
