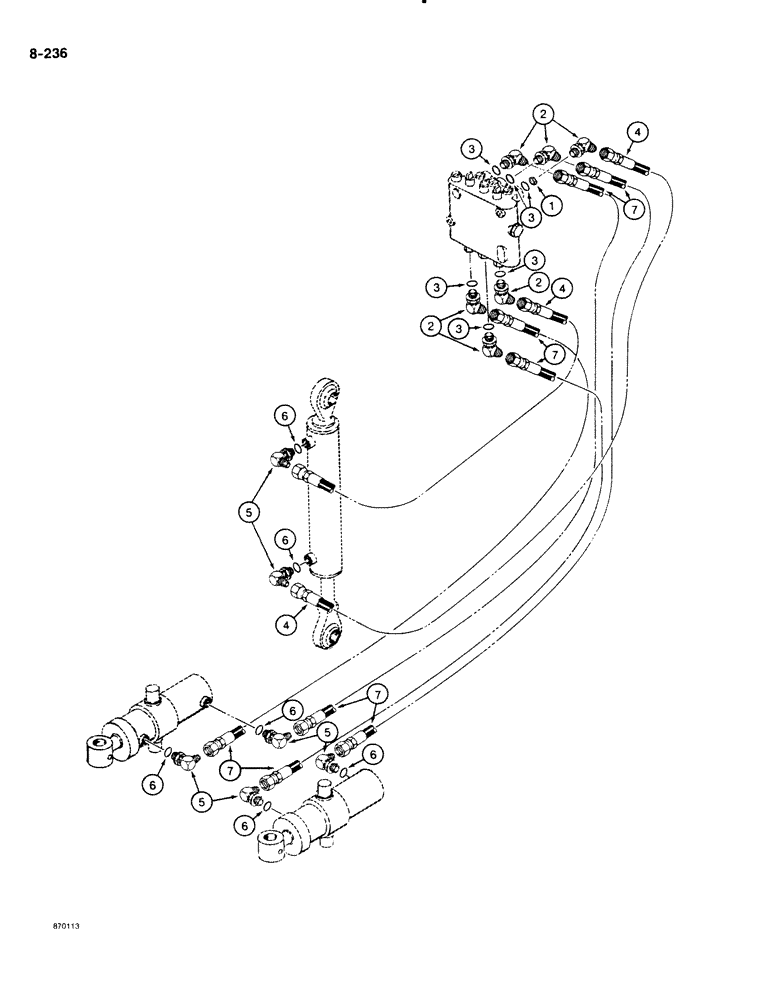

Запчасти Case DH4B (8-236) - REAR MOUNTED BACKFILL BLADE WITH PLOW HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H746875

SCREW

RESTRICTOR - special, .043" (1.09 mm) orifice

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 3

6шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

Backfill Control Valve to Backfill Lift Cylinder 6.35 mm ID x 1066.80 mm, SAE 100R1

2шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 6

6шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

H307959

HOSE ASSY.

HOSE - 52" (1321 mm) long, backfill control valve to backfill angle cylinders

4шт.
