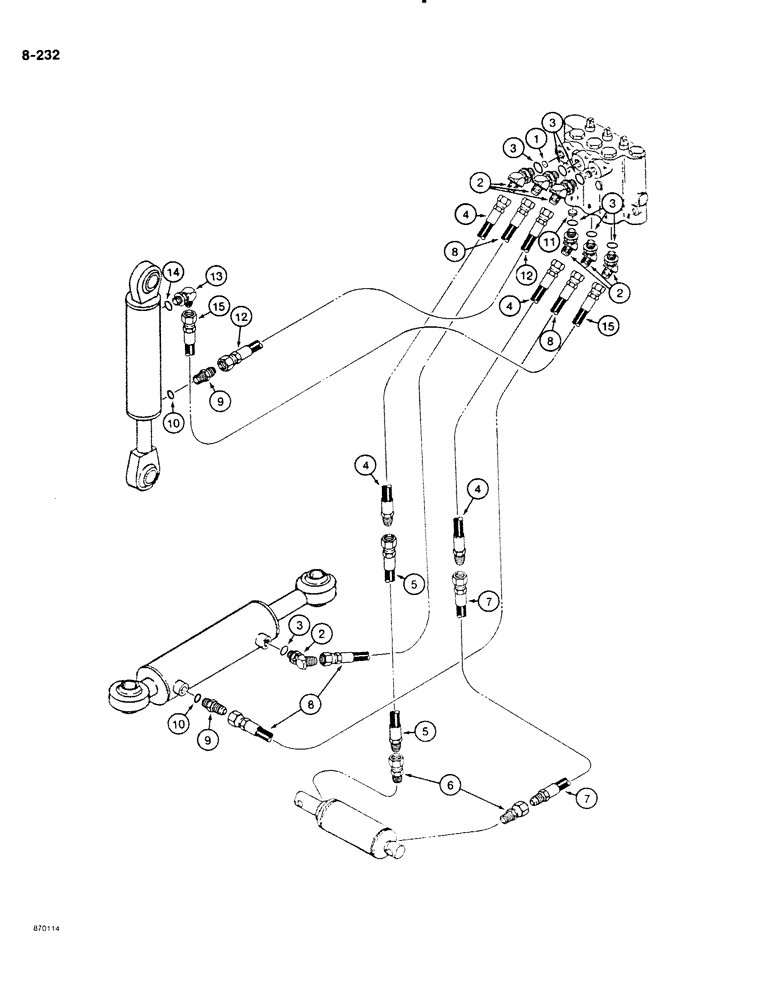

Запчасти Case DH4B (8-232) - FRONT MOUNTED 6-WAY BACKFILL BLADE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H757815

PORT

RESTRICTOR - special, .038" (0.965 mm) orifice

2шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 3

7шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

H256511

HYDRAULIC HOSE,6.35 mm ID x 1955.80 mm, SAE 100R1A

Backfill Control Valve to Backfill Tilt Cylinder 6.35 mm ID x 1955.80 mm, SAE 100R1A

1шт.

5

H257287

HOSE

- 165" (4191 mm) long, backfill control valve to backfill tilt cylinder, rod end

1шт.

6

218-909

HYD CONNECTOR,1/8" NPT x 1/4" NPSM Fem

CONNECTOR - straight, swivel, 1/8" NPSM male x 1/4" NPTF

2шт.

7

H195339

HOSE ASSY.

HOSE - 84" (2134 mm) long, backfill control valve to backfill tilt cylinder, closed end

1шт.

8

H426445

HYDRAULIC HOSE,6.40 mm ID x 4050.00 mm, SAE 100R1

- Backfill control valve to backfill angle cylinder 6.40 mm ID x 4050.00 mm, SAE 100R1

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, Incl. Ref. 10

2шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

11

H746875

SCREW

RESTRICTOR - special, .043" (1.09 mm) orifice

1шт.

12

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

Backfill Control Valve to Backfill Lift Cylinder, Rod End 0.25" ID x 122.05", SAE 100R1A

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 14

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

15

H432146

HYDRAULIC HOSE,6.35 mm ID x 3300.00 mm, SAE 100R2AT

- Backfill control valve to backfill lift cylinder, Closed end 6.35 mm ID x 3300.00 mm, SAE 100R2AT

1шт.
