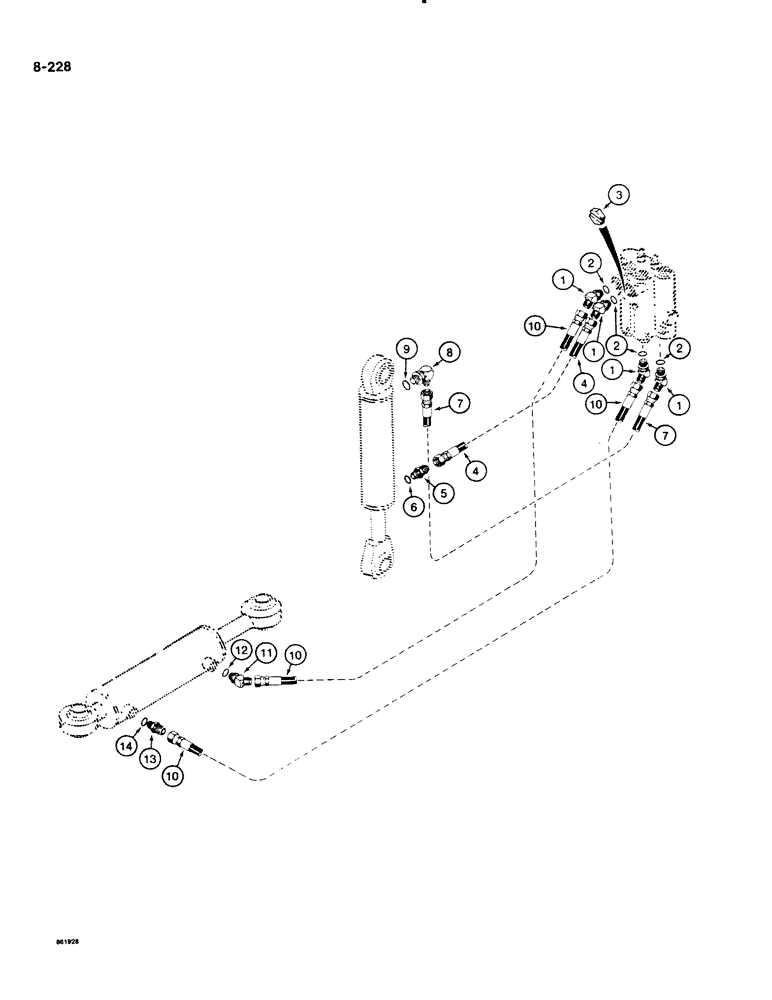

Запчасти Case DH4B (8-228) - FRONT MOUNTED 4-WAY BACKFILL BLADE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 2

4шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

3

H746875

SCREW

RESTRICTOR - special, .043" (1.09 mm) orifice

1шт.

4

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

Backfill Control Valve to Backfill Lift Cylinder, Rod End 0.25" ID x 122.05", SAE 100R1A

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, Incl. Ref. 6

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

7

H432146

HYDRAULIC HOSE,6.35 mm ID x 3300.00 mm, SAE 100R2AT

- Backfill control valve to backfill lift cylinder, Closed end 6.35 mm ID x 3300.00 mm, SAE 100R2AT

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, Includes: Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

10

H426445

HYDRAULIC HOSE,6.40 mm ID x 4050.00 mm, SAE 100R1

- Backfill control valve to backfill angle cylinder 6.40 mm ID x 4050.00 mm, SAE 100R1

2шт.

11

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, Incl. Ref. 14

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.
