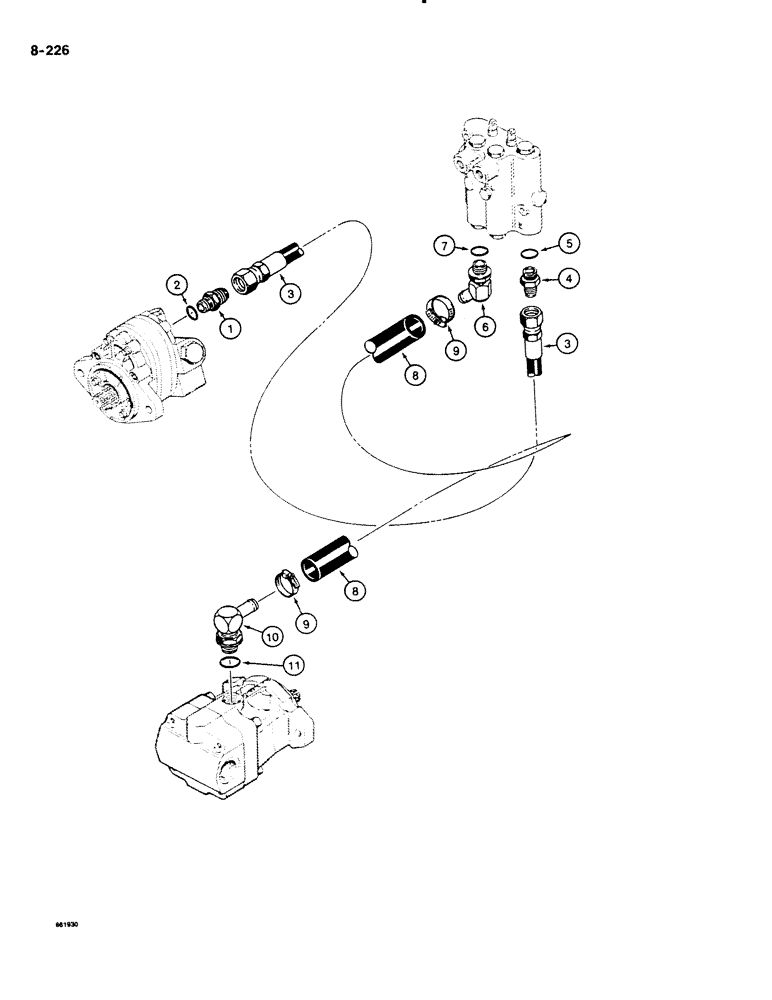

Запчасти Case DH4B (8-226) - BACKFILL BLADE CONTROL VALVE SUPPLY AND RETURN LINES, MODELS WITH BACKFILL BLADE UNDRE PLOW (08) - HYDRAULICS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 2

1шт.

3

H323857

HOSE ASSY.

HOSE - 94" (2388 mm) long, steering pump to backfill control valve

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 5

1шт.

6

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - 45 degree, adjustable, Includes: Ref. 7

1шт.

8

H337915

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 103" (2616 mm) long, backfill control valve to plow motor case drain, cut from 180720C2 bulk hose, see below

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

10

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - 90 degree, adjustable, Incl. Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

180720C2

HOSE ASSY.

HOSE - bulk length, 3/4" (19 mm) ID x 25 ft (762 cm) long, use to make ref. 8

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.
