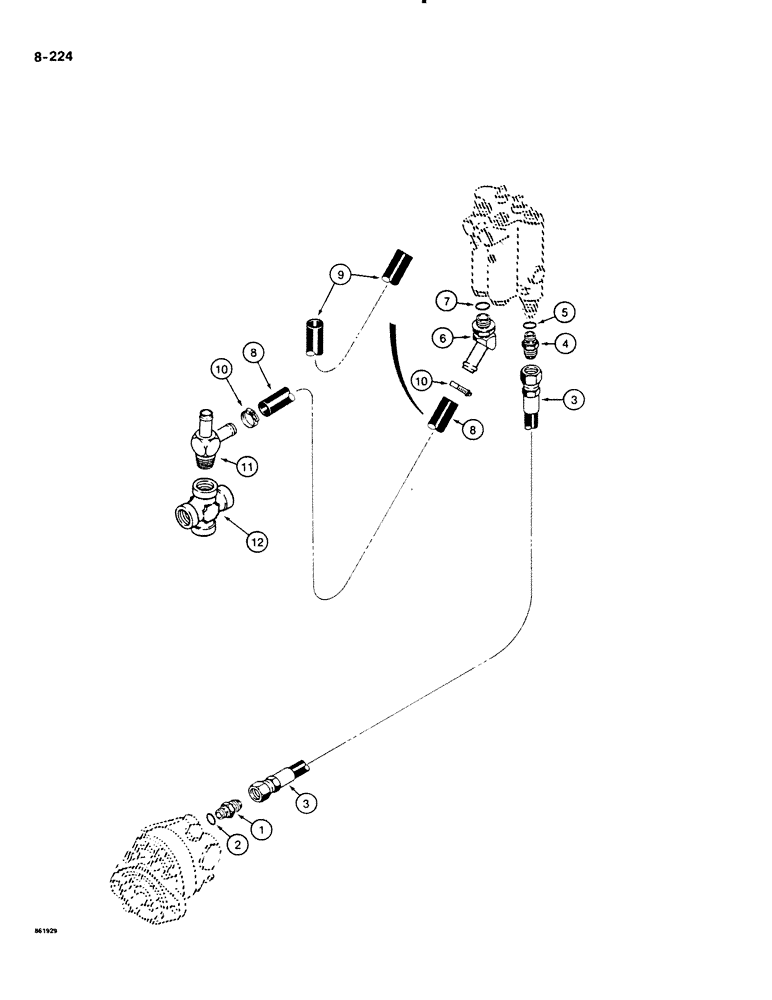

Запчасти Case DH4B (8-224) - BACKFILL BLADE CONTROL VALVE SUPPLY AND RETURN LINES, MODELS WITHOUT BACKFILL BLADE UNDER PLOW (08) - HYDRAULICS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 2

1шт.

3

H323857

HOSE ASSY.

HOSE - 94" (2388 mm) long, steering pump to backfill control valve

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, Incl. Ref 5

1шт.

6

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - 45 degree, adjustable, Includes: Ref. 7

1шт.

8

H433226

HOSE

- 3/4" (19 mm) ID x 21-5/8" (550 mm) long, backfill control valve return, used on units with backhoe and/or hydra-borer, if used, cut from H433227 bulk hose, see below

1шт.

9

H309088

HOSE

- 3/4" (19 mm) ID x 35" (889 mm) long, backfill control valve to trencher motor case drain, used on units with from backfill and rear trencher, if used, see Parts Substitution List for bulk hose options

1шт.

10

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

11

H433210

TEE

- special, used on units with backhoe and/or hydra-borer, if used

1шт.

12

221-1505

CROSS

- 3/4" NPT

1шт.

H433227

HOSE

- bulk length, 3/4" (19 mm) ID x 149-5/8" (3800 mm) long, use to make ref. 8

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.
