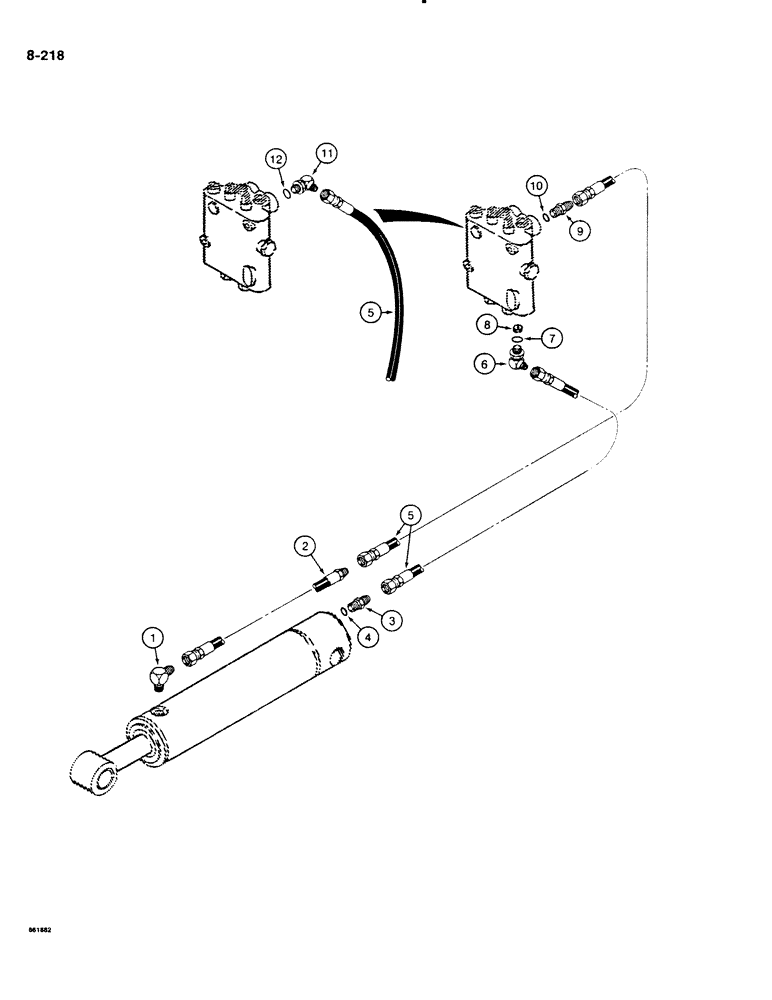

Запчасти Case DH4B (8-218) - TRENCHER BOOM LIFT HYDRAULIC CIRCUIT, FRONT MOUNTED (08) - HYDRAULICS

1

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree

1шт.

2

H432112

HOSE ASSY.

HOSE - 22" (559 mm) long, trencher boom lift cylinder rod end to control valve hose, used on units with straight connector in "C" port of control valve, if used

1шт.

2

H433223

HOSE ASSY.

HOSE - 15-3/4" (400 mm) long, trencher boom lift cylinder rod end to control valve hose, used on units with 45 degree elbow in "C" port of control valve, if used

1шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, Includes: Ref. 4

1шт.

5

H432138

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm, SAE 100R2AT

HOSE - 140" (2556 mm) long, To control valve

2шт.

6

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, Includes: Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

8

H746875

SCREW

RESTRICTOR - special, .043" (1.09 mm) orifice

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, if used, Incl. Ref. 10

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

11

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, if used, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
