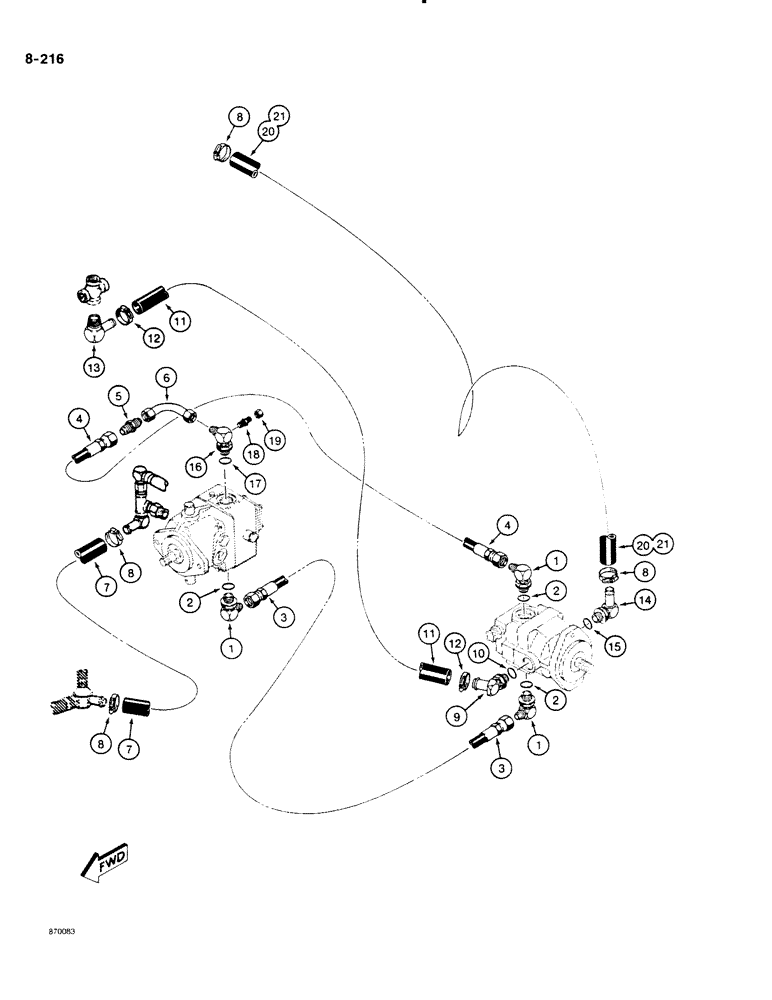

Запчасти Case DH4B (8-216) - REAR MOUNTED TRENCHER DRIVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 2

3шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

3

H380105

HOSE,0.75" ID x 84.65", SAE 100R9

Attachment Drive Pump to Trencher Drive Motor 0.75" ID x 84.65", SAE 100R9

1шт.

4

H429340

HYDRAULIC HOSE,19.05 mm ID x 2650.00 mm, SAE 100R9

- Attachment drive pump to trencher drive motor 19.05 mm ID x 2650.00 mm, SAE 100R9

1шт.

5

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight

1шт.

6

H421362

TUBE ASSY.,19 mm OD x 105, 38 mm L

TUBE - attachment drive pump to hose

1шт.

7

H317321

HOSE

- 3/4" (19 mm) ID 13" (330 mm) long, return, see Parts Subsitution List for bulk hose options

1шт.

8

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

9

217-315

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - 45 degree, Includes: Ref. 10

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

11

H358093

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 16" (406 mm) long, motor to cross, cut from D55911 hose, see below

1шт.

12

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

13

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degree, hose to cross

1шт.

14

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - 90 degree, adjustable, Incl. Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

16

H364489

ELBOW

- special, side outlet, Includes: Ref. 17

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

18

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight

1шт.

19

218-755

CAP,37 Degree, 3/4"-16

1шт.

20

H433227

HOSE

- bulk length, 3/4" (19 mm) ID x 149-5/8" (3800 mm) long, backhoe control valve out port to trencher motor case drain, if used

1шт.

21

H309088

HOSE

- 3/4" (19 mm) ID x 35" (889 mm) long, backfill control valve out port to trencher motor case drain, if used, see Parts Substitution List for bulk hose options

1шт.

D55911

HOSE

- 3/4" (19 mm) ID x 28" (711 mm) long, use to make ref. 11

1шт.
