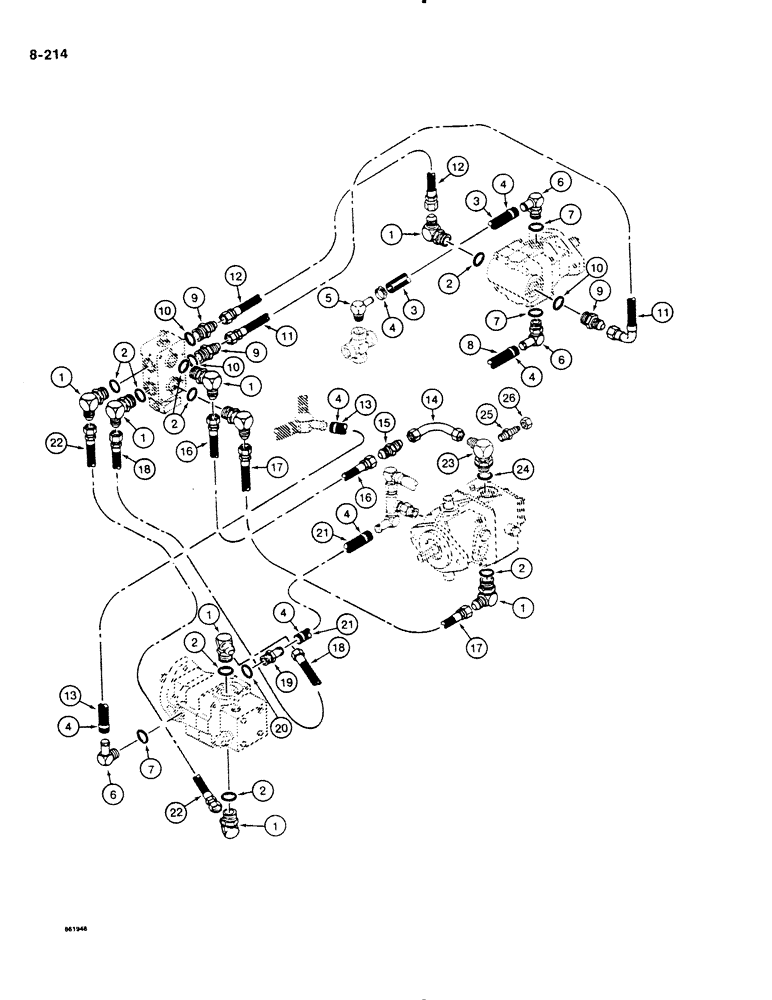

Запчасти Case DH4B (8-214) - FRONT MOUNTED TRENCHER DRIVE HYDRAULIC CIRCUIT, MODELS WITH PLOW (08) - HYDRAULICS

1

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 2

8шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

3

H338095

HOSE

- 3/4" (19 mm) ID x 61" (1549 mm) long, plow motor to reservoir, cut from 180720C2 bulk hose, see below

1шт.

4

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

8шт.

5

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - 90 degree

1шт.

6

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - 90 degree, adjustable, Incl. Ref. 7

3шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

8

H337915

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 103" (2616 mm) long, from steering, backfill, or hydra-borer control valve, cut from 180720C2 bulk hose, see below

1шт.

9

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 10

3шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

11

H373621

HOSE

- 143-11/16" (3650 mm) long, plow motor to selector valve

1шт.

12

H373613

HOSE

- 137-13/16" (3500 mm) long, plow motor to selector valve

1шт.

13

H307769

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 42" (1067 mm) long, trencher drive motor to three-way fitting, cut from 180720C2 bulk hose, see below

1шт.

14

H421362

TUBE ASSY.,19 mm OD x 105, 38 mm L

TUBE - attachment drive pump, elbow to connector

1шт.

15

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight

1шт.

16

H388207

HOSE ASSY.

HOSE - 22" (560 mm) long, attachment drive pump to selector valve, upper port

1шт.

17

H388215

HOSE ASSY.

HOSE - 24" (610 mm) long, attachment drive to selector valve, lower port

1шт.

18

H388207

HOSE ASSY.

HOSE - 22" (560 mm) long, trencher drive motor to selector valve, lower port

1шт.

19

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - straight, Includes: Ref. 20

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- stem fitting

1шт.

21

H309039

LARGE HOSE

HOSE - 3/4" (19 mm) ID x 38" (965 mm) long, return, cut from 108720C2 bulk hose, see below

1шт.

22

H388215

HOSE ASSY.

HOSE - 24" (610 mm) long, trencher drive motor to selector valve, upper port

1шт.

23

H219568

ADAPTER

ELBOW - special, side outlet, Includes: Ref. 24

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

25

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight

1шт.

26

218-755

CAP,37 Degree, 3/4"-16

1шт.

180720C2

HOSE ASSY.

HOSE - bulk lenght, 3/4" (19 mm) ID x 25 ft (762 cm) long, use to make refs. 3, 8, 13, and 21

1шт.
