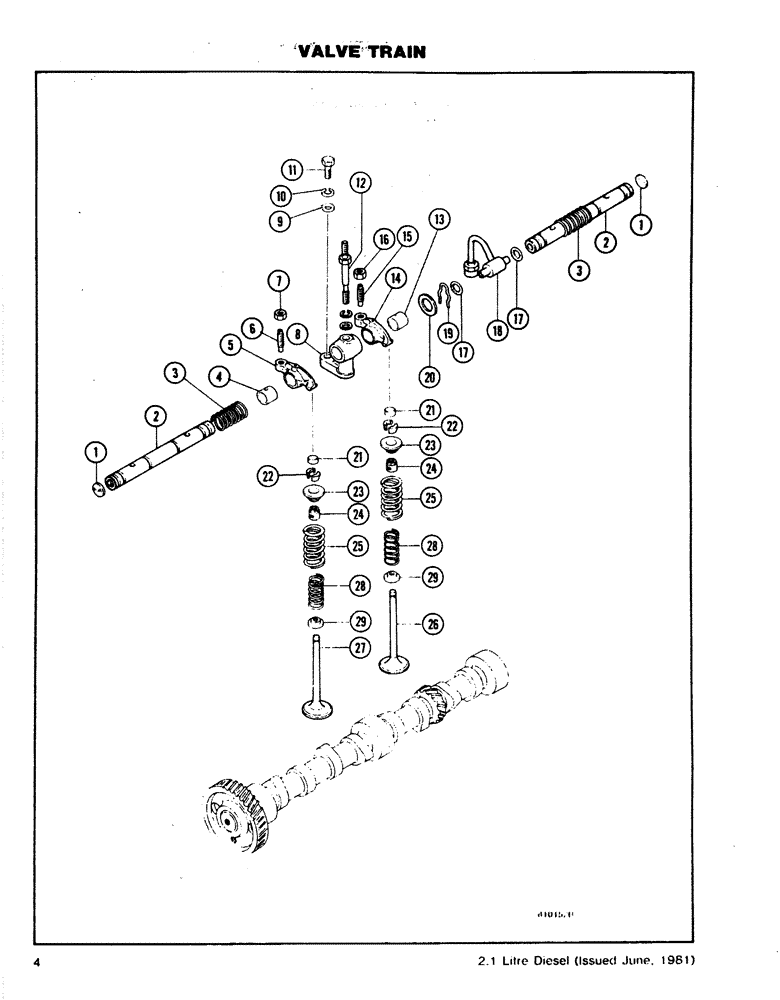

Запчасти Case DH4 (04) - VALVE TRAIN (10) - ENGINE

H659334

SHAFT

ROCKSHAFT ASSEMBLY, Includes: Ref. 1 and 2

2шт.

1

541-12

PLUG

- Expansion

2шт.

2

NSS

NOT SOLD SEPARAT

ROCKSHAFT

2шт.

3

H410100

SPRING

- Rockshaft

2шт.

H659342

LEVER

ROCKER ARM ASSEMBLY, Includes: Ref. 4 - 7

4шт.

4

H410118

BUSHING

- Rocker Arm

4шт.

5

NSS

NOT SOLD SEPARAT

ROCKER ARM

4шт.

6

H410126

ADJUSTMENT SCREW,M8 x 1.25 x 32mm

- Adjusting

4шт.

7

H758805

NUT

- Lock

4шт.

8

H410134

BRACKET

- Rockshaft

4шт.

9

H758680

WASHER

- Flat

8шт.

10

892-1108

LOCK WASHER,M8

8шт.

11

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

12

H410142

BOLT

4шт.

H659359

LEVER

ROCKER ARM ASSEMBLY, Includes: Ref. 13 - 16

4шт.

13

H410118

BUSHING

- Rocker Arm

4шт.

14

NSS

NOT SOLD SEPARAT

ROCKER ARM

4шт.

15

H410126

ADJUSTMENT SCREW,M8 x 1.25 x 32mm

- Adjusting

4шт.

16

H758805

NUT

LOCK NUT

4шт.

17

H410159

O-RING

2шт.

18

H410167

PIPE,41, 22 mm L

- Oil (Cylinder Head to Rockshaft)

1шт.

19

H410175

RING, SNAP

RING - Snap

4шт.

20

H410183

WASHER

4шт.

21

H410191

CAP

- Valve

8шт.

22

H410209

SPLIT PIN

COTTER - Valve (Available As A Pair)

16шт.

23

H410217

RETAINER

- Upper

8шт.

24

H410225

SEAL

- Valve Stem

8шт.

25

H410233

SPRING

- Outer

8шт.

26

H410241

VALVE

- Exhaust

4шт.

27

H410258

VALVE

- Inlet

4шт.

28

H410266

SPRING

- Inner

8шт.

29

H410274

RETAINER

- Lower

8шт.
