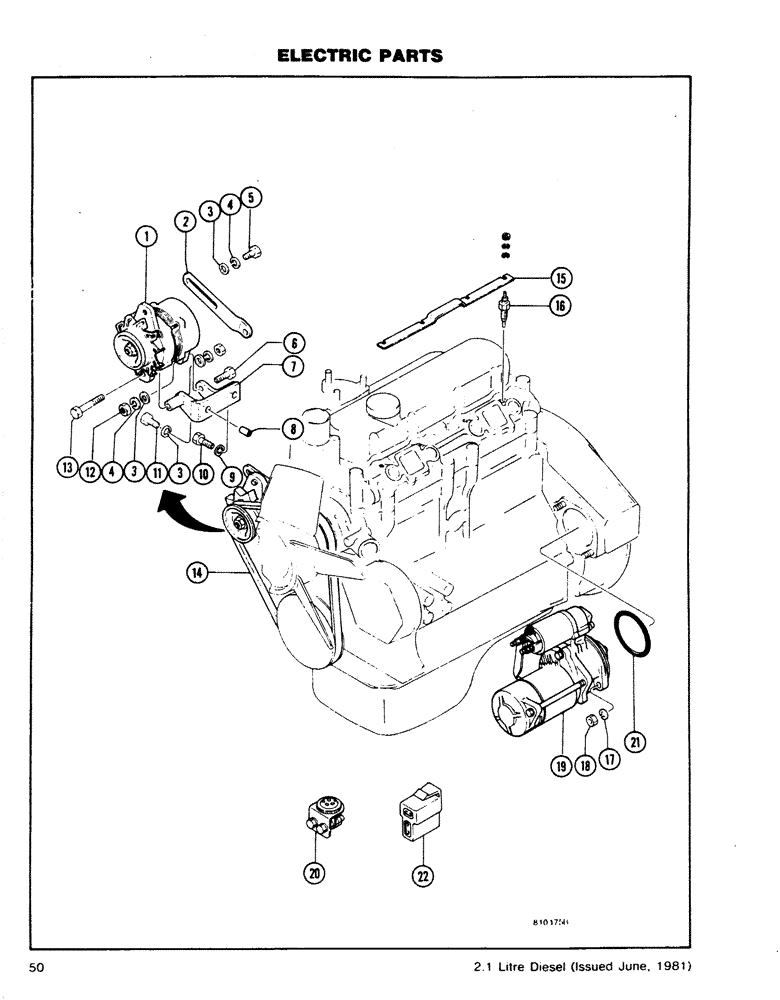

Запчасти Case DH4 (50) - ELECTRICAL PARTS (55) - ELECTRICAL SYSTEMS

1

H412445

ALTERNATOR

SPARE PART ALTERNATOR

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65A

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR

1шт.

2

H410837

PLATE

PLATE - Adjusting

1шт.

3

H758698

WASHER

WASHER - Flat

3шт.

4

892-1110

LOCK WASHER,M10

LOCK WASHER, M10

3шт.

5

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 1.25 x 20, 8.8, Full Thd

1шт.

6

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 35, 8.8, Full Thd

1шт.

7

H410829

BRACKET

BRACKET - Alternator

1шт.

8

H412452

SPACER

SPACER

1шт.

9

892-1112

LOCK WASHER,M12

LOCK WASHER, M12

2шт.

10

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

BOLT, Hex, M12 x 45, 8.8

1шт.

11

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

BOLT

1шт.

12

525-5100

NUT,M10 x 1.25, Cl 8

NUT

2шт.

13

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

BOLT, Hex, M10 x 70, 8.8

1шт.

14

H410845

V-BELT

Fan

1шт.

15

H411306

PLATE

PLATE - Connection

1шт.

16

H411314

SPARE PART

PLUG - Glow

4шт.

17

892-1110

LOCK WASHER,M10

LOCK WASHER, M10

2шт.

18

525-5100

NUT,M10 x 1.25, Cl 8

NUT

2шт.

19

H421099

MOTOR HOUSING

SPARE PART STARTER

1шт.

Solenoid P/N N8048.

1шт.

20

H411322

LAMP BASE

LAMP - Glow

1шт.

21

H420208

O-RING,79.5 mm ID

O-RING

1шт.

22

H420216

CONNECTOR, ELEC

CONNECTOR CONNECTOR

1шт.
