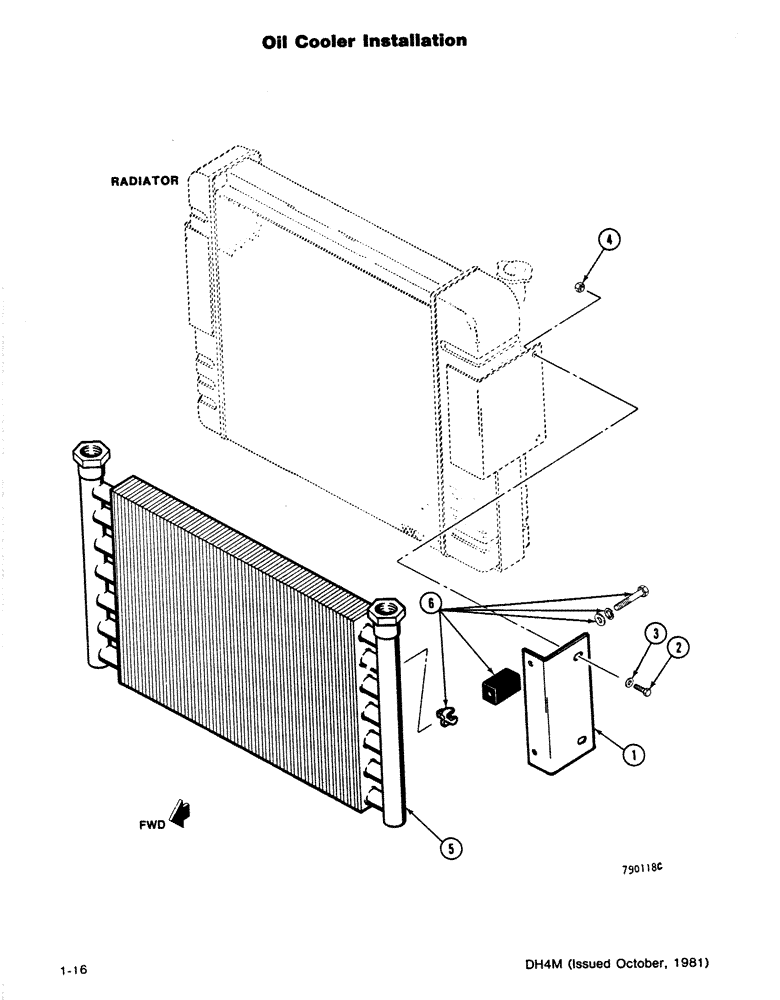

Запчасти Case DH4 (1-16) - OIL COOLER INSTALLATION (41) - STEERING

1

H374942

BRACKET

- Oil Cooler Mounting, Includes: Refs. 2-4

2шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16), Includes: Refs. 5, 6

4шт.

5

H640110

COOLER

- Oil

1шт.

6

H642926

MOUNTING PARTS

MOUNT - Oil Cooler (includes 2 complete mounts)

2шт.
