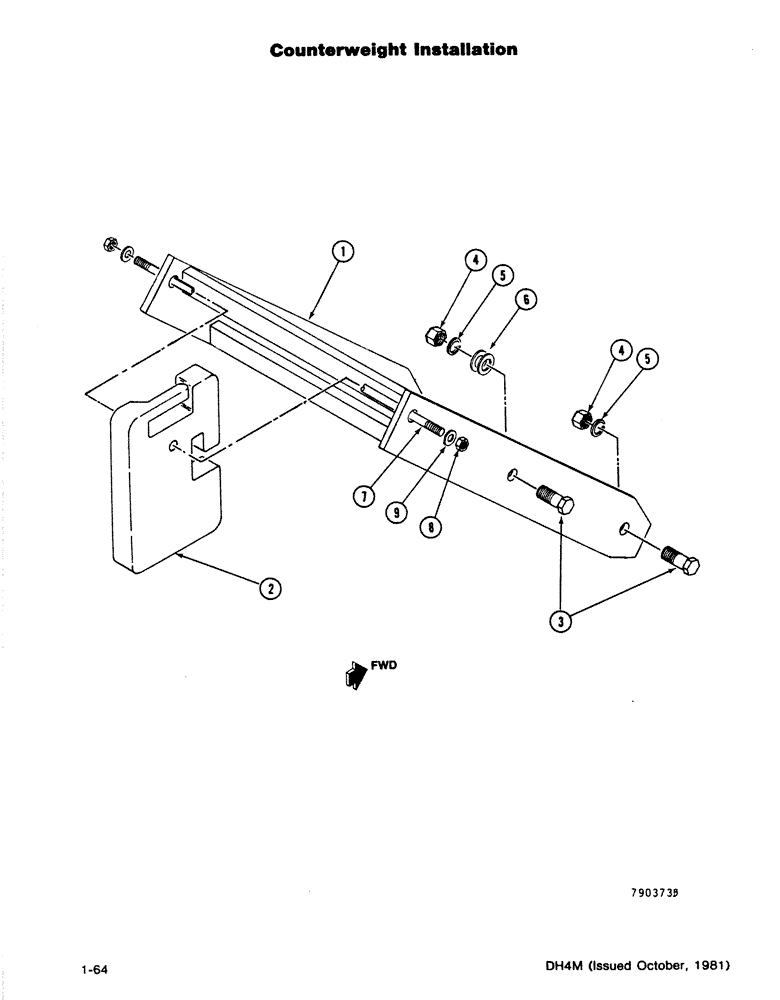

Запчасти Case DH4 (1-64) - COUNTERWEIGHT INSTALLATION (39) - FRAMES AND BALLASTING

1

H643163

BRACKET

- Weight

1шт.

2

H182386

BALANCER

WEIGHT

15шт.

3

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

4

131-1184

LOCK NUT,1"-8, GA

NUT - Hex (1 NC)

4шт.

5

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

6

195-111

WASHER,1"

SPACER - Washer (1 Flat)

4шт.

7

H379339

STUD

BOLT - Truss

1шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - Hex (5/8 NC Lock)

2шт.

9

195-541

WASHER,5/8", SAE

- Flat (5/8)

2шт.
