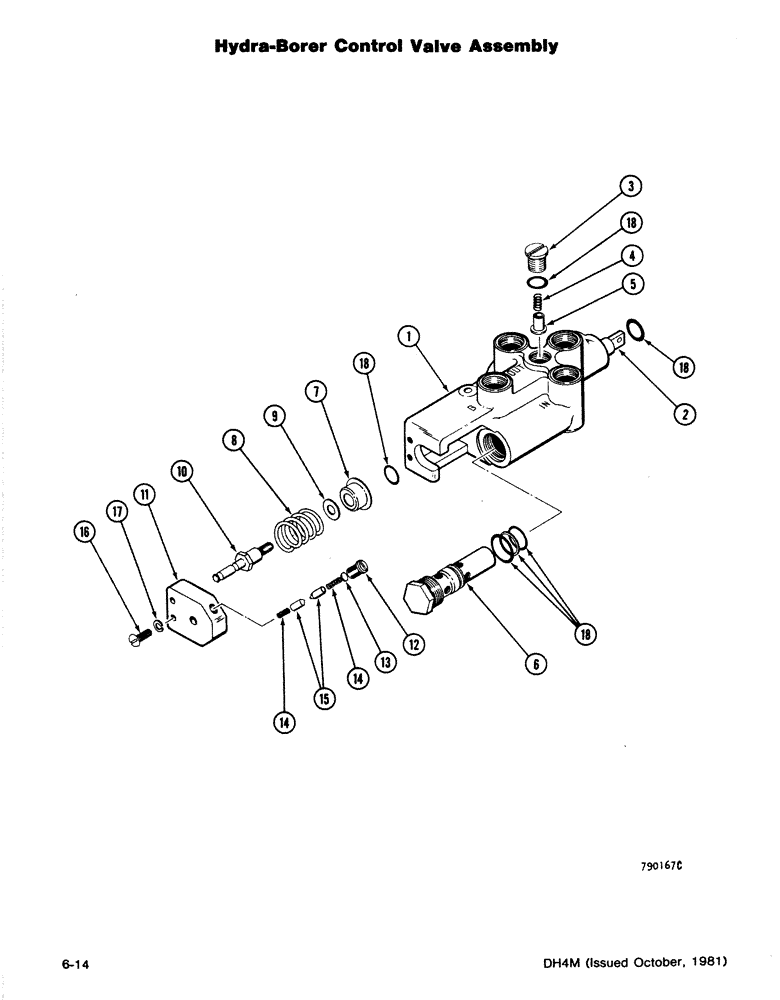

Запчасти Case DH4 (6-14) - HYDRA-BORER CONTROL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

H544718

LOCK VALVE

CONTROL VALVE ASSEMBLY - Hydra-Borer, Includes: Refs. 1-18

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

H47506

PLUG

- (Includes O-Ring)

1шт.

4

H47514

SPRING

- Lift check

1шт.

5

H52894

PLUNGER

- Lift Check

1шт.

6

H102053

VALVE

- Relief - 2500 PSI (Includes O-Rings)

1шт.

7

H138271

WASHER

1шт.

8

H52928

VALVE SPRING

SPRING - Spool

1шт.

9

F59116

WASHER

1шт.

10

H152157

SCREW

- Detent

1шт.

11

H125831

BLOCK

- Detent

1шт.

12

H105015

PLUG

- Detent

1шт.

13

H141788

DISC

- (3/16 x .010)

1шт.

14

H105049

SPRING

- Detent

2шт.

15

H104992

PAWL

- Detent

2шт.

16

NSS

NOT SOLD SEPARAT

SCREW - Block

2шт.

17

NSS

NOT SOLD SEPARAT

WASHER - Lock

2шт.

18

H125864

KIT

- Seal Repair

1шт.
