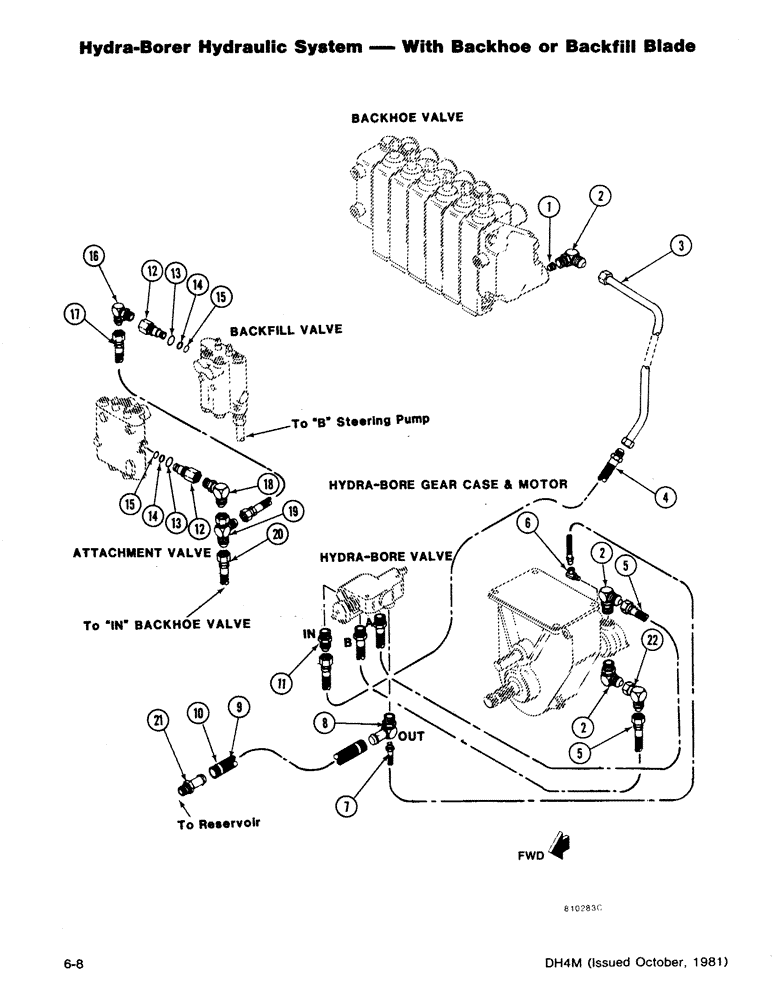

Запчасти Case DH4 (6-08) - HYDRA-BORER HYDRAULIC SYSTEM - WITH BACKHOE OR BACKFILL BLADE (35) - HYDRAULIC SYSTEMS

1

221-843

PLUG,Hex Soc, 3/8"-18

- Pressure Beyond

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 ORB x 7/8 JIC M) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

3шт.

Use 218-5062 Fitting.

1шт.

3

H645069

TUBE,15.88 mm OD

1шт.

3

H646695

TUBE,15.9 mm OD

1шт.

4

H202572

HYDRAULIC HOSE,12.70 mm ID x 914.40 mm, SAE 100R1

12.70 mm ID x 914.40 mm, SAE 100R1

1шт.

4

H390070

HOSE ASSY.

HOSE - 1/2 x 2800 mm (7/8 JIC Fe Swv x 7/8 JIC M)

1шт.

5

H91892

HOSE,0.50" ID x 48.00", SAE 100R1

2шт.

6

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degree (1/8 MP x 1/8 Fe P)

1шт.

7

H88575

HOSE,0.25" ID x 48.00", SAE 100R3

1шт.

8

H317438

FITTING

ELBOW - 90 degree Special (7/8 JIC M x 3/4 Barb)

1шт.

9

H312520

HOSE

- 3/4 x 52

1шт.

10

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - (7/8 ORB x 7/8 JIC M)

1шт.

H347906

FITTING

ADAPTER - Pressure Beyond, Includes: Refs. 12-15

2шт.

12

NSS

NOT SOLD SEPARAT

BODY

1шт.

13

D26872

O-RING

1шт.

14

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

15

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree (3/4 ORB x 3/4 JIC M)

1шт.

17

H195750

HYDRAULIC HOSE,9.52 mm ID x 355.60 mm, SAE 100R1

9.52 mm ID x 355.60 mm, SAE 100R1

1шт.

18

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree (3/4 ORB x 7/8 JIC M)

1шт.

19

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

- (7/8 JIC Fe Swv x 7/8 JIC M x 3/4 JIC M)

1шт.

20

H352575

HOSE,0.50" ID x 34.00, SAE 100R2A

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 MP x 3/4 Barb)

1шт.

22

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- (7/8 JIC Fe Swv x 7/8 JIC M)

1шт.
