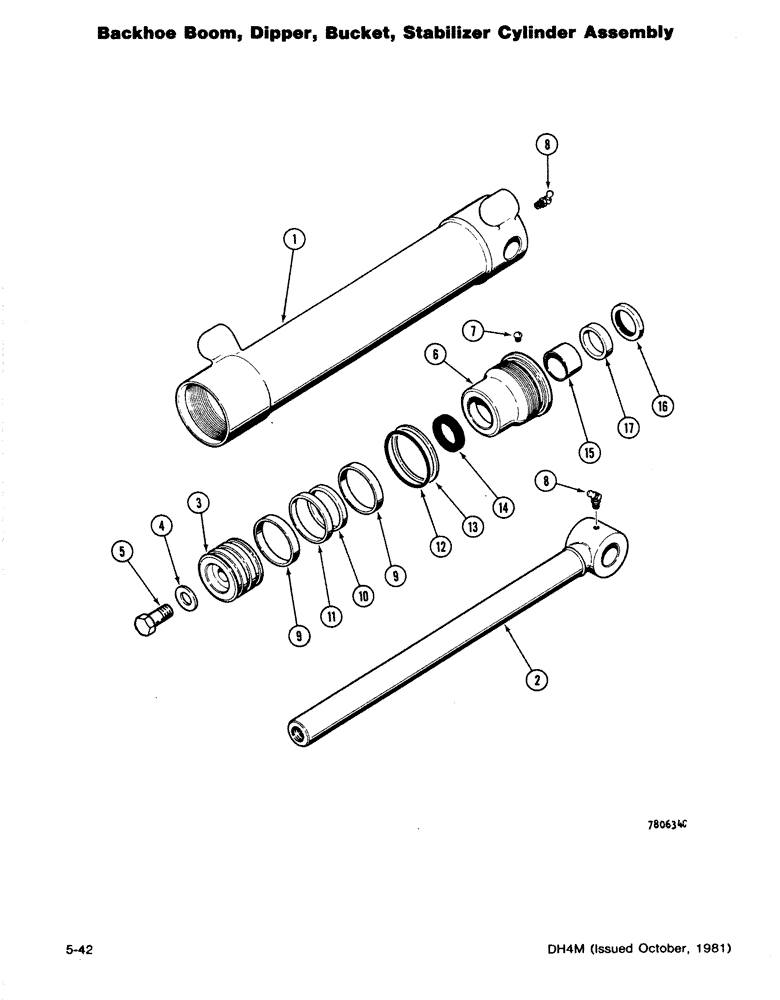

Запчасти Case DH4 (5-42) - BACKHOE BOOM, DIPPER, STABILIZER CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - Boom, Dipper (D100), Bucket, Stabilizer, Includes: Refs. 1-17

5шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

BARREL

1шт.

2

G101357

ROD

- Piston

1шт.

3

G100441

PISTON

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Special, Includes: Ref. 5

1шт.

5

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G35218

GLAND

Includes: Ref. 7

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - NC Self Tapping (#8 x 1/4)

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - Grease

2шт.

G102404

SEAL

KIT - Seal Repair, Includes: Refs. 9-16

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Wear

2шт.

Included with Ref. 3.

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - Piston

1шт.

Included with Ref. 3.

1шт.

11

NSS

NOT SOLD SEPARAT

RING - Piston

1шт.

Included with Ref. 3.

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included with Ref. 6.

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

Included with Ref. 6.

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

Included with Ref. 6.

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - Rod

1шт.

Included with Ref. 6.

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

Included with Ref. 6.

1шт.

17

NSS

NOT SOLD SEPARAT

RING - Steel

1шт.

Included with Ref. 6.

1шт.

G100931

CYLINDER

ASSEMBLY - Dipper (D-100XR), Includes: Refs. 1-16

1шт.

1

G100932

TUBE

BARREL

1шт.

2

G100932

TUBE

ROD - Piston

1шт.

3

G35263

PISTON

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Special, Includes: Ref. 5

1шт.

5

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G35218

GLAND

Includes: Ref. 7

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - NC Self Tapping (#8 x 1/4)

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - Grease

2шт.

G34656

SEAL

KIT - Seal Repair, Includes: Refs. 9-16

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Wear

1шт.

Included with Ref. 3.

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included with Ref. 3.

1шт.

11

NSS

NOT SOLD SEPARAT

RING

1шт.

Included with Ref. 3.

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included with Ref. 6.

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

Included with Ref. 6.

1шт.

14

NSS

NOT SOLD SEPARAT

Seal - Rod

1шт.

Included with Ref. 6.

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - Rod

1шт.

Included with Ref. 6.

1шт.

16

WIPER - Rod

1шт.

Included with Ref. 6.

1шт.
