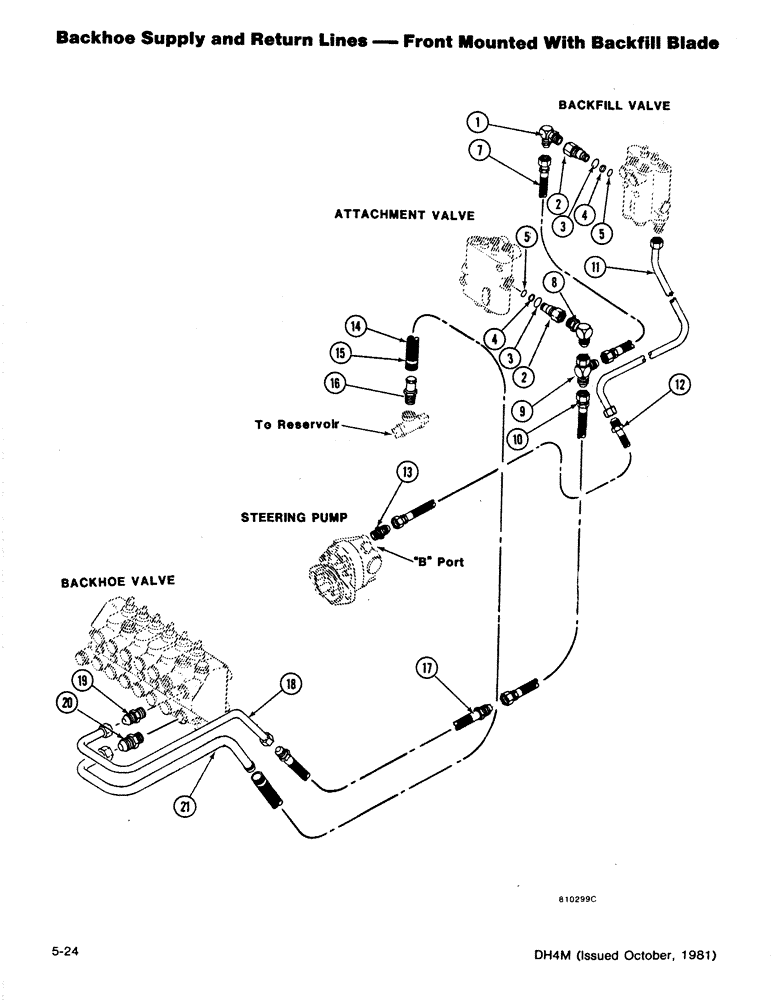

Запчасти Case DH4 (5-24) - BACKHOE SUPPLY AND RETURN LINES - FRONT MOUNTED WITH BACKFILL BLADE (35) - HYDRAULIC SYSTEMS

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree (3/4 ORB x 3/4 JIC M)

1шт.

H347906

FITTING

ADAPTER - Pressure Beyond, Includes: Refs. 2-5

2шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

D26872

O-RING

1шт.

4

B37070

WASHER - Backup

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

7

H195750

HYDRAULIC HOSE,9.52 mm ID x 355.60 mm, SAE 100R1

9.52 mm ID x 355.60 mm, SAE 100R1

1шт.

8

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree (3/4 ORB x 7/8 JIC M)

1шт.

9

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

- (7/8 JIC M x 7/8 JIC Fe Swv x 3/4 JIC M)

1шт.

10

H352575

HOSE,0.50" ID x 34.00, SAE 100R2A

1шт.

11

H416081

TUBE ASSY.,12.7 mm OD

TUBE - Pressure

1шт.

12

H190041

HYDRAULIC HOSE,9.52 mm ID x 457.20 mm, SAE 100R1

9.52 mm ID x 457.20 mm

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JIC M)

1шт.

14

H356600

HOSE

- 3/4 x 130

1шт.

15

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

16

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - (3/4 MP x 3/4 Barb)

1шт.

17

H390062

HOSE

- 1/2 x 2300 mm(7/8 JIC M Ends)

1шт.

18

H646679

TUBE,15.9 mm OD

- Pressure

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - (7/8 ORB x 7/8 JIC M)

1шт.

20

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - (7/8 ORB x 1-1/16 JIC M)

1шт.

21

H646687

TUBE,19.05 mm OD

- Return

1шт.
