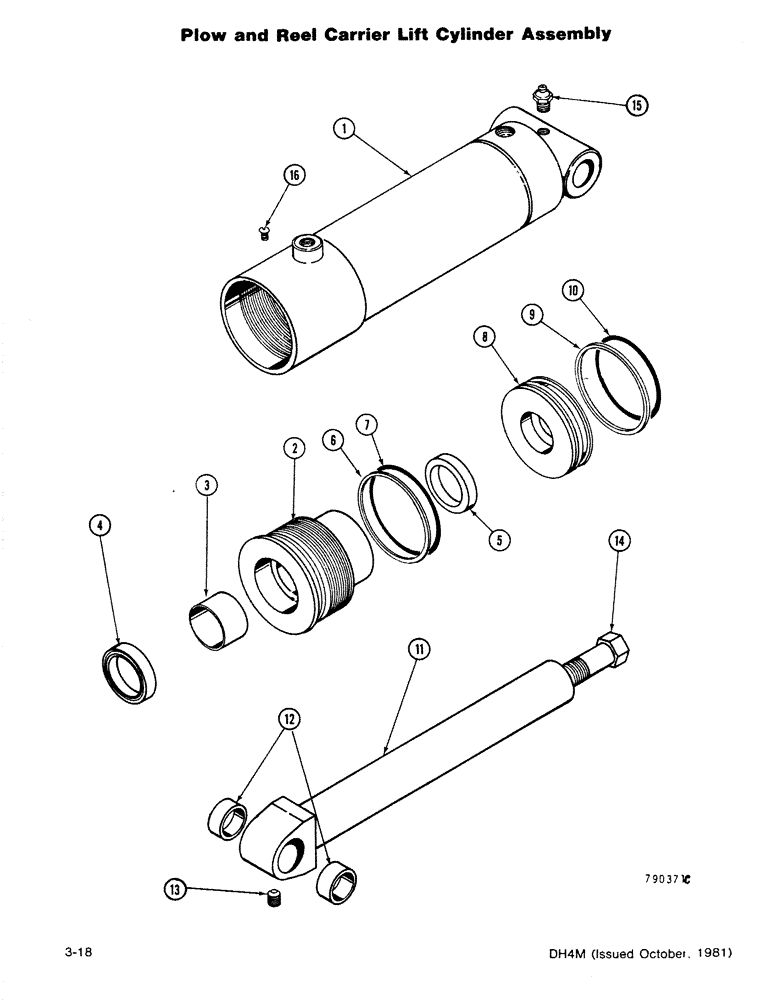

Запчасти Case DH4 (3-18) - PLOW AND REEL LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

ASSEMBLY - Plow/Reel Carrier Lift, Includes: Refs. 1-16

1шт.

1

G32061

HYD TUBE,13.57" L

BARREL

1шт.

G34328

GLAND

ASSEMBLY, Includes: Refs. 2-7

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND

1шт.

3

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING

1шт.

Included in G45656 Seal Repair Kit.

1шт.

4

NSS

NOT SOLD SEPARAT

SCRAPER - Rod

1шт.

Included in G45656 Seal Repair Kit.

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

Included in G45656 Seal Repair Kit.

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

Included in G45656 Seal Repair Kit.

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in G45656 Seal Repair Kit.

1шт.

G104107

PISTON

ASSEMBLY, Includes: Refs. 8-10

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in G45656 Seal Repair Kit.

1шт.

10

NSS

NOT SOLD SEPARAT

RING - Seal

1шт.

Included in G45656 Seal Repair Kit.

1шт.

G33749

ROD

PISTON ROD ASSEMBLY, Includes: Refs. 11-13

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON ROD

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

13

221-849

PLUG,Hex Soc, 1/8"-27

SCREW - Set

1шт.

14

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Piston Hex, 3/4-16 x 2", G8, Full Thd

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

1шт.

16

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW

1шт.
