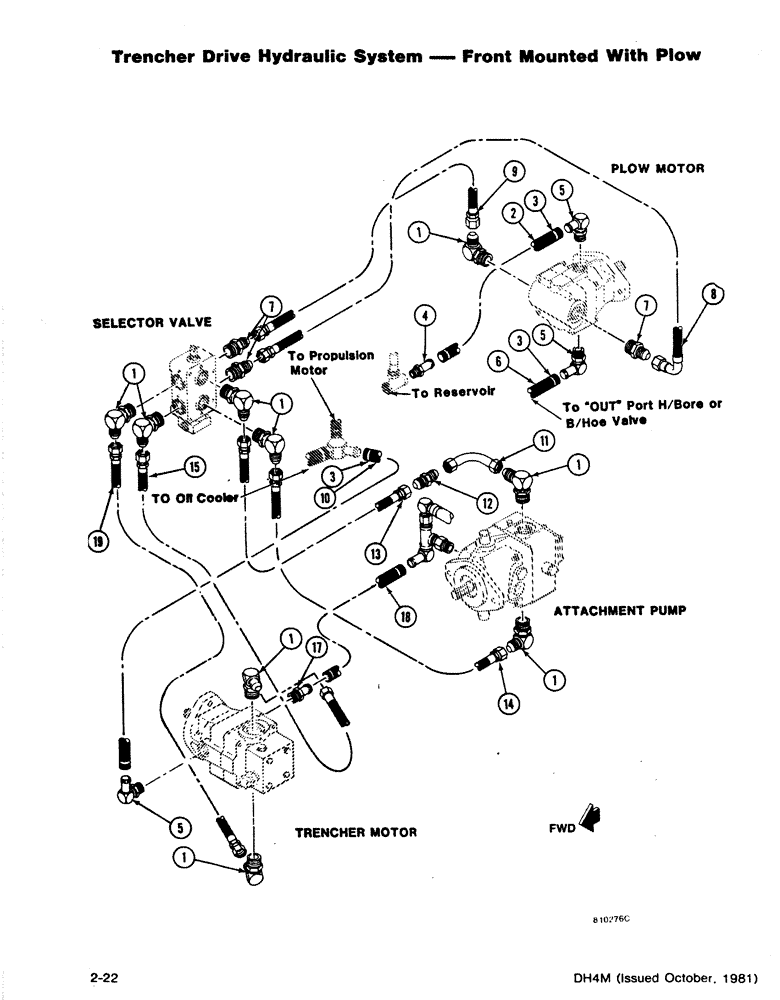

Запчасти Case DH4 (2-22) - TRENCHER DRIVE HYDRAULIC SYSTEM - FRONT MOUNTED WITH PLOW (35) - HYDRAULIC SYSTEMS

1

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-5/8 ORB x 1-1/16 JIC M)

9шт.

2

H338095

HOSE

- (3/4 x 61)

1шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

7шт.

4

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - (3/4 MP x 3/4 Barb)

1шт.

5

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degrees (1-1/16 ORB x 3/4 Barb)

3шт.

6

H337915

HOSE ASSY.

HOSE - (3/4 x 103)

1шт.

7

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1 5/16 ORB x 1-1/16 JIC M)

3шт.

8

H373621

HOSE

& TUBE - 3/4 x 3650 mm (1-1/16 JIC Fe Swv)

1шт.

9

H373613

HOSE

- 3/4 x 3500 mm (1-1/16 JIC Fe Swv)

1шт.

10

H307769

HOSE ASSY.

HOSE - (3/4 x 42)

1шт.

11

H421362

TUBE ASSY.,19 mm OD x 105, 38 mm L

TUBE - (3/4)

1шт.

12

218-436

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

CONNECTOR - (1-1/16 JIC M)

2шт.

13

H388207

HOSE ASSY.

HOSE - 3/4 56 mm (1-1/16 JIC Fe Swv Ends)

1шт.

14

H388215

HOSE ASSY.

HOSE - 3/4 x 30 (1-1/16 JIC Fe Swv Ends)

1шт.

15

H388215

HOSE ASSY.

HOSE - 3/4 x 610 mm (1-1/16 JIC Fe Swv Ends)

1шт.

16

DELETED

1шт.

17

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

CONNECTOR - (1-1/16 ORB x 3/4 Barb)

1шт.

18

H309039

LARGE HOSE

HOSE - (3/4 x 38)

1шт.

19

S400832

HOSE

- 3/4 x 49 (1-1/16 JIC Fe Swv Ends)

1шт.
