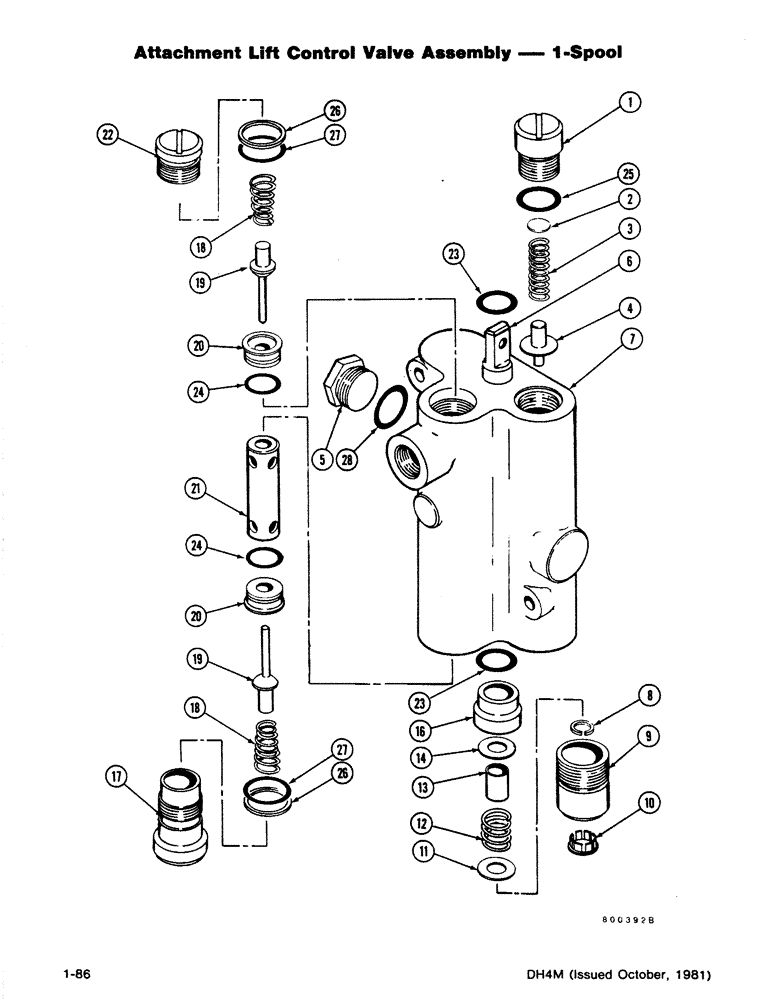

Запчасти Case DH4 (1-86) - ATTACHMENT LIFT CONTROL VALVE ASSEMBLY - 1-SPOOL (35) - HYDRAULIC SYSTEMS

H657320

VALVE

ATTACH LIFT CONTROL VALVE, Includes: Refs. 1-28

1шт.

1

F37892

PLUG

ASSEMBLY - (Includes O-Ring)

1шт.

2

H746149

SHIM,.015" Thk

Relief valve .015" Thk

1шт.

2

F12267

WASHER

SHIM - Relief Valve (0.010)

1шт.

2

H220798

SHIM,.035" Thk

Relief Valve .035" Thk

1шт.

3

L33609

SPRING

- Relief Valve (Purple)

1шт.

4

FH731679

VALVE POPPET

POPPET - (Included in Seal Repair Kit)

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG - Pressure Beyond (Includes O-Ring)

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

7

NSS

NOT SOLD SEPARAT

BODY

1шт.

8

H758367

RING

- Retaining

1шт.

9

H375667

CAP

1шт.

10

205-14

HOLE PLUG BUTTON,3/8"

BUTTON - Cover

1шт.

11

F36908

WASHER

1шт.

12

F36306

SPRING

- Spool

1шт.

13

F36239

SPACER

- Spool

1шт.

14

H253062

WASHER

1шт.

16

F36304

BUSHING

1шт.

17

H636969

FITTING

PLUG - Port Adapter

1шт.

18

H364182

SPRING

- Lockout

2шт.

19

F77048

VALVE POPPET

POPPET ASSEMBLY

2шт.

20

H636951

SEAT

ASSEMBLY - (Includes O-Ring)

2шт.

21

F8229

PLUNGER

- Lockout

1шт.

22

H636977

PLUG

ASSEMBLY - (Includes O-Ring)

1шт.

H660274

KIT

SEAL REPAIR KIT, Includes: Refs. 23-28

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - Spool

2шт.

24

NSS

NOT SOLD SEPARAT

O-RING - Seat

2шт.

25

NSS

NOT SOLD SEPARAT

O-RING - Relief Valve

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - Backup, Plug

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING - Plug

2шт.

28

NSS

NOT SOLD SEPARAT

O-RING - Plug

1шт.
