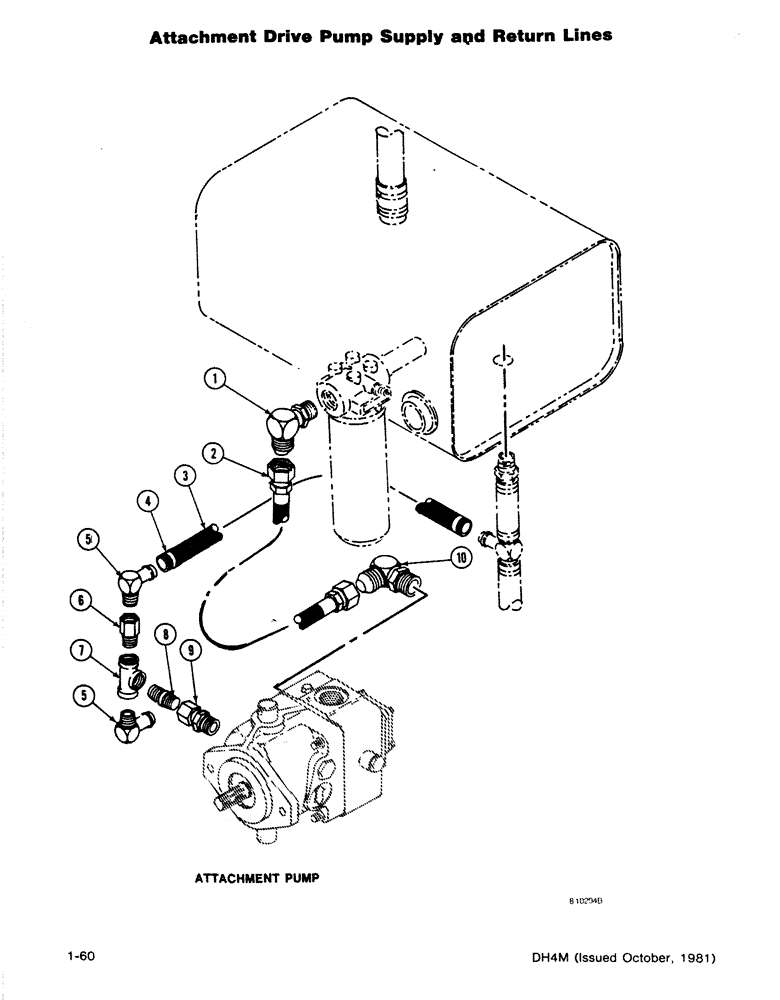

Запчасти Case DH4 (1-60) - ATTACHMENT DRIVE PUMP SUPPLY AND RETURN LINES (35) - HYDRAULIC SYSTEMS

1

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degrees (1-5/16 JIC M x 1 MP)

1шт.

2

H285205

HYDRAULIC HOSE,25.40 mm ID x 1397.00 mm, SAE 100R1

(1-5/16 JIC Fe Swv) 25.40 mm ID x 1397.00 mm, SAE 100R1

1шт.

3

H212951

HOSE

- 3/4 x 24

1шт.

4

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

5

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90 degrees (3/4 MP x 3/4 Barb)

2шт.

6

H627513

VALVE

- Bypass

1шт.

7

221-445

TEE - Pipe (3/4)

1шт.

8

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - Pipe (3/4)

1шт.

9

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

CONNECTOR - (1-1/16 ORB x 3/4 Fe P)

1шт.

10

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º (1-5/16 ORB x 5/16 JIC M)

1шт.

11

218-5096

ADAPTER

- (3/4 ORB x 1/8 Fe P)

1шт.
