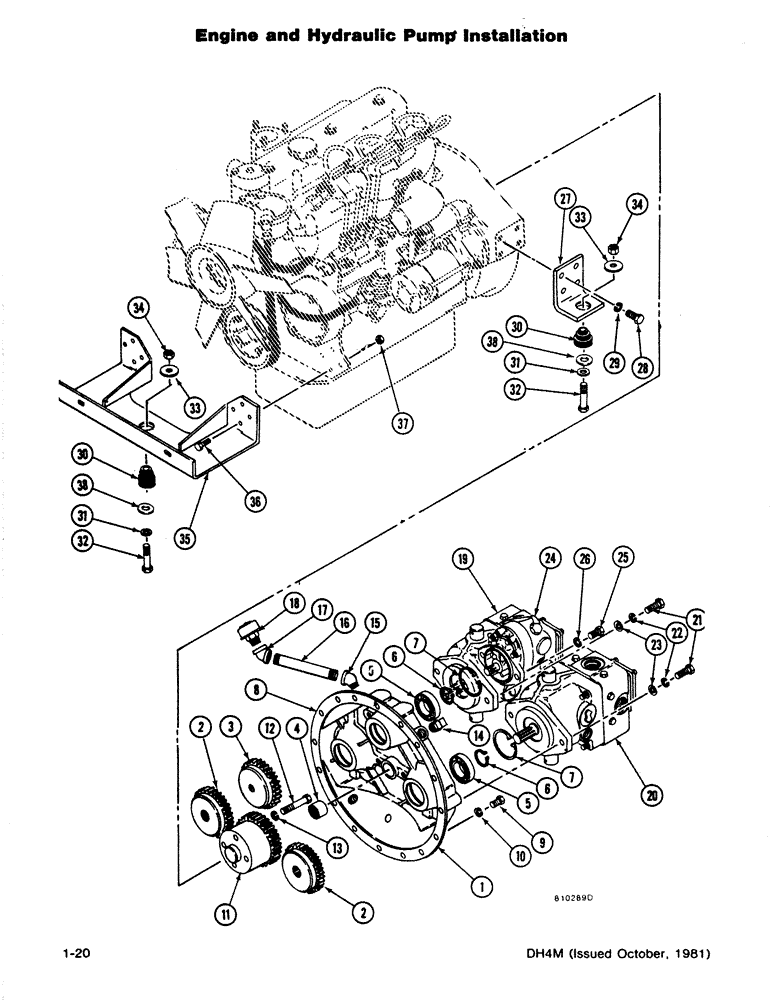

Запчасти Case DH4 (1-20) - ENGINE AND HYDRAULIC PUMP INSTALLATION (10) - ENGINE

H661942

DRIVE ASSY.

PUMP DRIVE ASSEMBLY, Includes: Refs. 2-8

1шт.

1

H399048

HOUSING

1шт.

2

H405506

GEAR

- Driven

2шт.

3

H411389

GEAR

- Driven

1шт.

4

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - Needle

1шт.

5

H753103

BALL BEARING

BEARING - Ball

3шт.

6

A7409

SNAP RING,#137, Ext

RING, Snap, #137, Ext

3шт.

7

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

3шт.

8

H10249

LOCTITE 601 - (.05 oz.)

1шт.

9

513-705

BOLT

- HH (M10 x 25)

14шт.

10

892-1110

LOCK WASHER,M10

14шт.

11

H399105

GEAR

- Pump Drive

1шт.

12

H405514

BOLT

- HH (M12 x 1.25 x 1.25 x 110)

4шт.

13

892-1112

LOCK WASHER,M12

4шт.

14

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - Pipe (3/4)

1шт.

15

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 45deg. Pipe (3/4 St.)

1шт.

16

221-227

PIPE - 3/4 x 8

1шт.

17

221-369

ELBOW UNION,45 Degree, 3/4" NPT

ELBOW - 45 deg. Pipe (3/4)

1шт.

18

A75179

BREATHER

- Pipe (replaces H501864)

1шт.

19

H628040

PUMP, HYDRAULIC

PUMP - PROPULSION (See figure 1-74)

1шт.

20

H661793

PUMP

- Attachment Drive (See figure 1-76)

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

23

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

24

H661702

PUMP

- Steering (See figure 1-78)

1шт.

25

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

26

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

H416198

MOUNTING PARTS

MOUNT - Engine (Rear)

2шт.

28

513-805

SCREW

BOLT - HH (M12 x 30)

8шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

30

H384578

ANCHOR

MOUNT - Engine

3шт.

31

195-106

WASHER,1/2"

- Flat (1/2)

3шт.

32

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

3шт.

33

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex (1/2 Lock)

3шт.

34

195-2053

WASHER,17/32" x 1 1/2" x .083"

- Flat (1/2 ID x 1-1/2 OD)

3шт.

35

H661819

MOUNTING PARTS

MOUNT - Engine (Front)

1шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

37

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex (5/16 Lock)

8шт.

38

B15606

WASHER

- Special (.531 x 2)

3шт.
