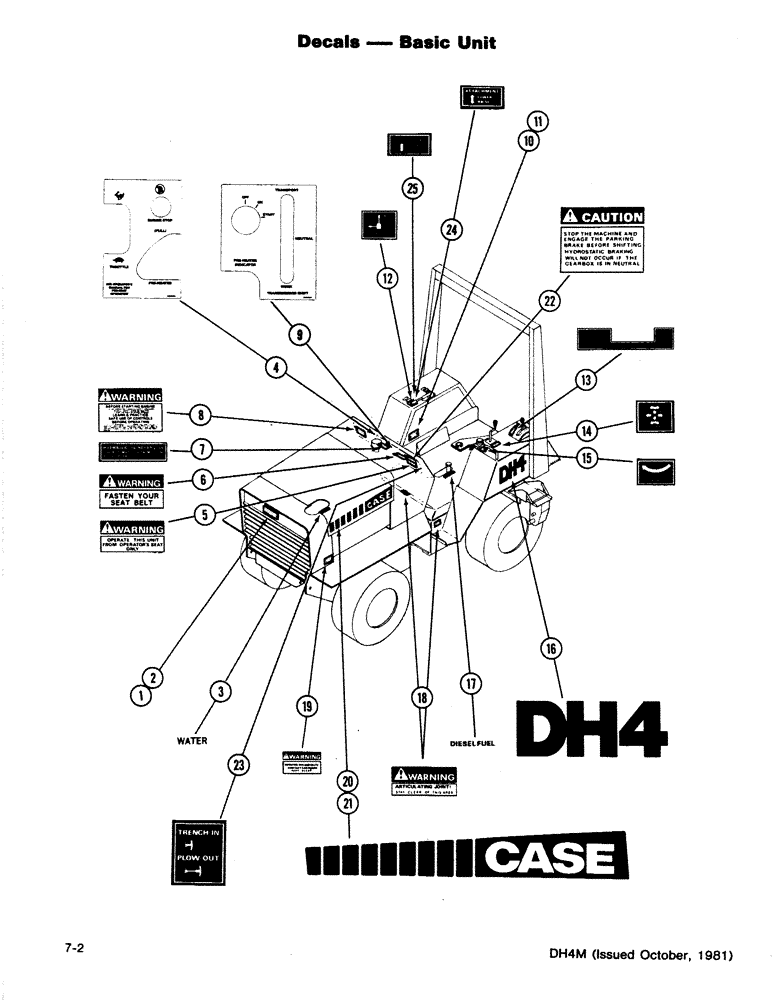

Запчасти Case DH4 (7-02) - DECALS - BASIC UNIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

321-4739

EMBLEM

MEDALLION - Case, Includes: Ref. 2

1шт.

2

131-431

PUSH-ON NUT,Self, Threading, 1/4"

PALNUT

2шт.

3

321-719

DECAL

- Water

3шт.

4

H416396

DECAL

- Throttle, Stop Control, Pre-Heater

1шт.

5

321-3905

DECAL

- Warning - Operate from Operator's Seat

1шт.

6

321-3217

DECAL

- Warning - Fasten Seat Belt

1шт.

7

H277723

DECAL

- Hydraulic Oil Type

1шт.

8

321-3705

DECAL

- Warning - Before Start Engine

1шт.

9

H416388

DECAL

- Transmission, Switch, Pre-Heater Indicator

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - Serial, Includes: Ref. 11

1шт.

11

168-73

SCREW,Type U, Rnd Hd, #10 x 3/8"

- Drive

2шт.

12

321-5287

DECAL

- Park Brake - ON/OFF

1шт.

13

321-5091

DECAL

- Trench & Plow Control

1шт.

14

H266627

DECAL

- Propulsion

1шт.

15

321-2989

DECAL

- Creep

1шт.

P/N H289694, Mono Stick Units Only.

1шт.

16

321-5089

DECAL

- DH4

2шт.

17

321-230

DECAL

- Diesel Fuel

2шт.

18

321-3218

DECAL

- Warning - Articulating Joint

3шт.

19

321-3596

DECAL

- Warning - Rotating Fan & Belts

2шт.

20

321-5949

DECAL

- Case - Left Hand (Shown)

1шт.

21

321-5950

DECAL

- Case - Right Hand (Not Illustrated)

1шт.

22

321-5501

DECAL

- Caution - Engage Parking Brake Before Shifting

1шт.

23

321-5639

DECAL

- Selector Valve

1шт.

Used only on machines with both trencher and plow attachments

1шт.

24

321-4651

DECAL

- Attachment Lift Control

1шт.

Used only on machines with a front-mounted attachment

1шт.

25

H249920

DECAL

- Attachment Lift Control

1шт.

Used only on machines with a rear-mounted attachment

1шт.
