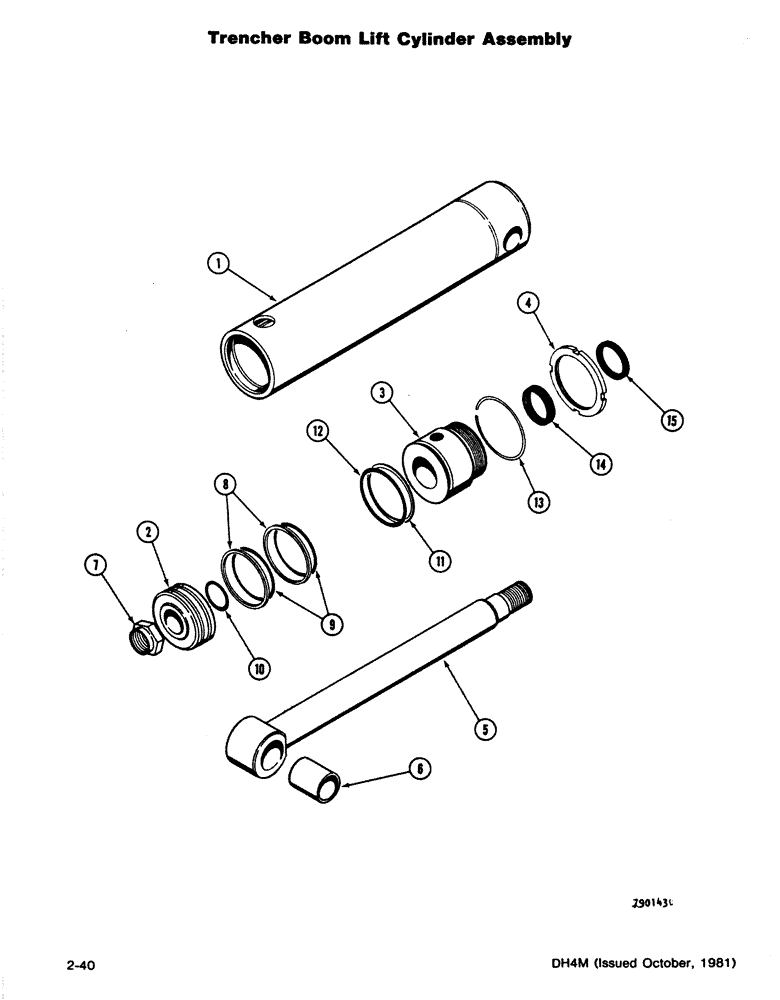

Запчасти Case DH4 (2-40) - TRENCHER BOOM LIFT CYLINDER ASSEMBLY (89) - TOOLS

H530519

CYLINDER BLOCK

CYLINDER ASSEMBLY - Trencher Boom Lift, Includes: Refs. 1-15

1шт.

1

H122218

SLEEVE CYLINDER

BARREL

1шт.

2

H120147

PISTON ASSY.

PISTON

1шт.

3

H120360

BEARING

1шт.

4

H745794

BEARING LOCK NUT

NUT - Bearing

1шт.

5

H570184

ROD

- Piston

1шт.

6

H220624

RING

BUSHING - Rod

1шт.

7

131-1141

LOCK NUT,1 1/8" - 12, Gr A

NUT - NF Hex Lock ( 1/18)

1шт.

H122234

SEAL ASSY.

KIT - Seal Repair, Includes: Refs. 8-15

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - Piston

2шт.

9

NSS

NOT SOLD SEPARAT

RING - Backup, Piston

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - Rod Static Seal

1шт.

11

NSS

NOT SOLD SEPARAT

RING - Backup, Bearing

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - Bearing Static Seal

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - Lock

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - Piston Rod

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - Piston Rod

1шт.
