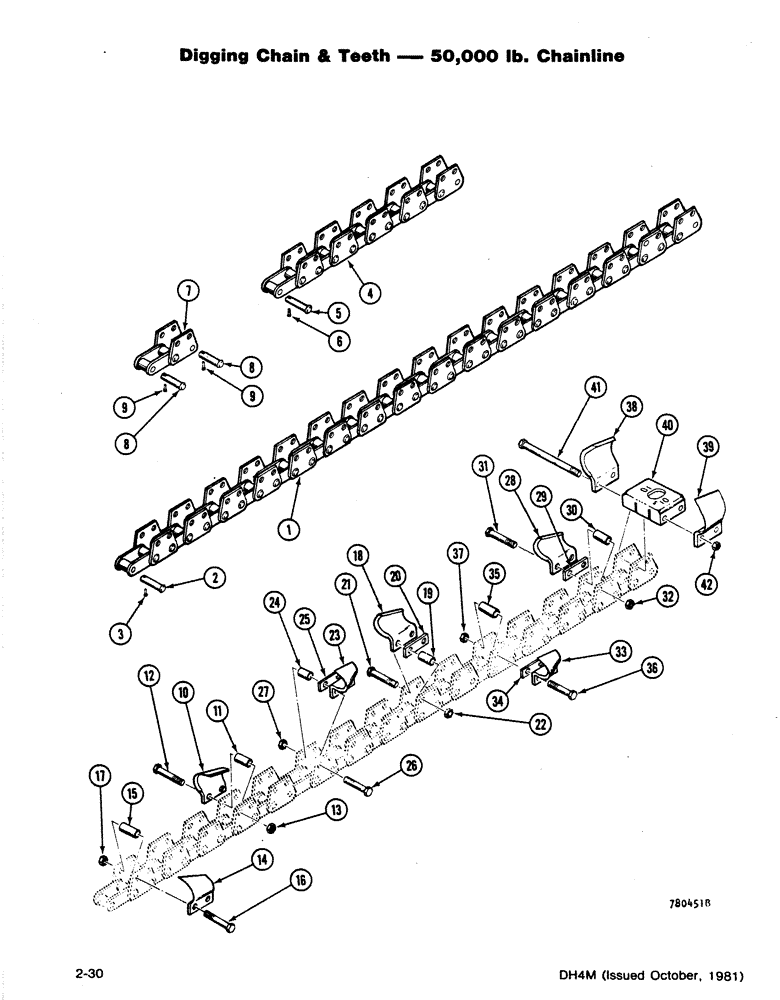

Запчасти Case DH4 (2-30) - DIGGING CHAIN & TEETH - 50,000 LB. CHAINLINE (89) - TOOLS

1

H542068

CHAIN (CE)

CHAIN ASSEMBLY - 48 Pitches, Includes: Refs. 2, 3

1шт.

To order chain for 3' boom, order a total of 60 pitches of chain. To order chain for 4' boom, order a total of 70 pitches of chain. To order chain for 5' boom, order a total of 80 pitches of chain.

1шт.

2

H145011

AXLE PIN

PIN - Connector, Includes: Ref. 3

1шт.

3

H170399

LOCK PIN

PIN - Keeper

1шт.

4

H538512

CHAIN (CE)

CHAIN ASSEMBLY - 10 Pitches, Includes: Refs. 5, 6

1шт.

To order chain for 3' boom, order a total of 60 pitches of chain. To order chain for 4' boom, order a total of 70 pitches of chain. To order chain for 5' boom, order a total of 80 pitches of chain.

1шт.

5

H145011

AXLE PIN

PIN - Connector, Includes: Ref. 6

1шт.

6

H170399

LOCK PIN

PIN - Keeper

1шт.

7

H543983

CHAIN (CE)

CHAIN ASSEMBLY - (Repair Section) 2 Pitches, Includes: Refs. 8, 9

1шт.

To order chain for 3' boom, order a total of 60 pitches of chain. To order chain for 4' boom, order a total of 70 pitches of chain. To order chain for 5' boom, order a total of 80 pitches of chain.

1шт.

8

H145011

AXLE PIN

PIN - Connector, Includes: Ref. 9

2шт.

9

H170399

LOCK PIN

PIN - Keeper

1шт.

10

H151241

TOOTH

- Mud R/H

1шт.

11

H318008

SPACER - Long, Includes: Refs. 12, 13

2шт.

12

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

13

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

14

H151258

TOOTH

- Mud L/H

1шт.

15

H138008

SPACER

- Long, Includes: Refs. 16, 17

2шт.

16

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

17

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

18

H131268

TOOTH

- Standard R/H

1шт.

19

H138016

SPACER

- Short

2шт.

20

H130815

SPACER

- Flat, Includes: Refs. 21, 22

1шт.

21

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

22

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

23

H131276

TOOTH

- Standard L/H

1шт.

24

H138016

SPACER

- Short

2шт.

25

H130815

SPACER

- Flat, Includes: Refs. 26, 27

1шт.

26

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

27

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

28

H131268

TOOTH

- Standard R/H

1шт.

29

H130815

SPACER

- Flat

1шт.

30

H138008

SPACER

- Long, Includes: Refs. 31, 32

2шт.

31

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

32

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

33

H131276

TOOTH

- Standard L/H

1шт.

34

H130815

SPACER

- Flat

1шт.

35

H138008

SPACER

- Long, Includes: Refs. 36, 37

2шт.

36

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

37

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

NSS

NOT SOLD SEPARAT

DIGGING TOOTH ASSEMBLY - 10", Includes: Refs. 38-42

1шт.

38

H131268

TOOTH

- Standard R/H

1шт.

39

H131276

TOOTH

- Standard L/H

1шт.

40

H148031

SUPPORT

BRACKET - Tooth Mounting - 10"

1шт.

41

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

Includes Refs. 42 Hex, 5/8"-11 x 6 1/2", G5

2шт.

42

131-1130

LOCK NUT,5/8"-11, GA

NUT - Hex C/L (5/8)

2шт.
