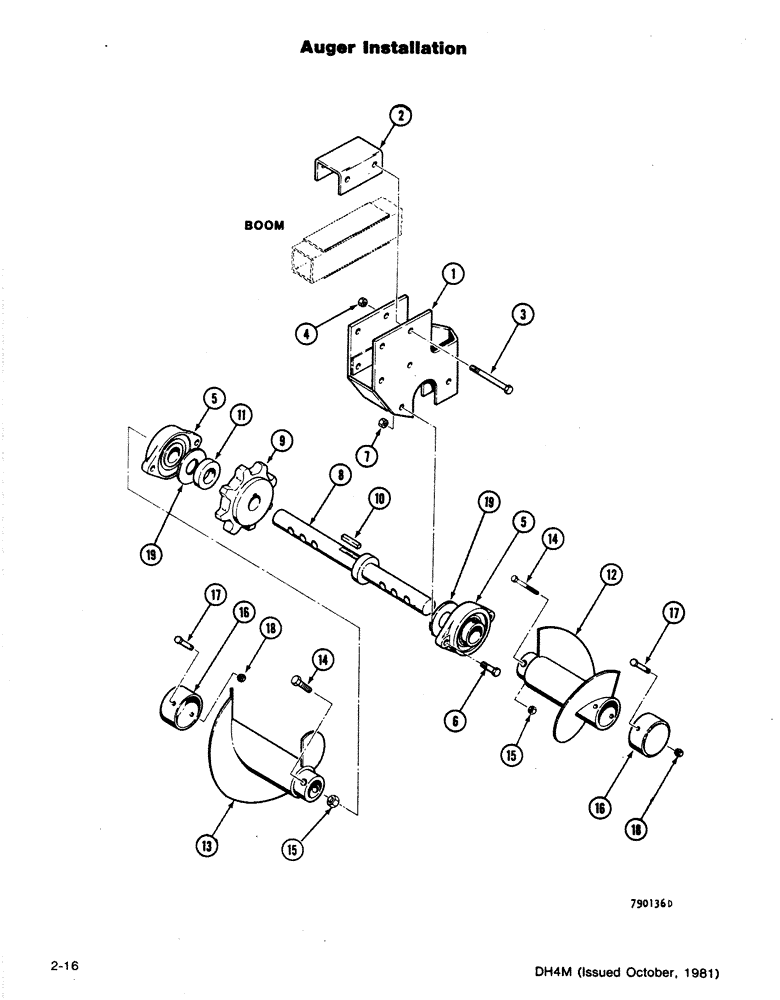

Запчасти Case DH4 (2-16) - AUGER INSTALLATION (89) - TOOLS

1

H641522

BRACKET

- Auger

1шт.

2

H375857

CHANNEL

- Auger Mounting, Includes: Refs. 3, 4

1шт.

3

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- NC HH (5/8 x 6)

4шт.

4

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

5

H652784

FLANGED BEARING

BEARING, Includes: Refs. 6, 7

2шт.

6

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- NC HH (5/8 x 2)

4шт.

7

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

8

H647289

SHAFT

- Auger

1шт.

9

H375899

PINION

SPROCKET - Auger Drive

1шт.

Use with 50,000 lb. chainline

1шт.

9

H375881

DRIVE SPROCKET

SPROCKET - Auger Drive

1шт.

Use with 70,000 lb. chainline

1шт.

10

H274829

KEY

- Square (1/2 x 2-1/2)

1шт.

11

H375790

RING

- Stop

1шт.

12

H642454

AUGER

- Left-Hand

1шт.

13

H642447

AUGER

- Right-Hand, Includes: Refs. 14, 15

1шт.

14

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

15

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC HH C/L (5/8)

2шт.

16

H570507

CYLINDER END CAP

CAP - Auger, Includes: Refs. 17, 18

2шт.

17

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- NC HH (5/8 x 5)

2шт.

18

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

19

H74708

SHIELD

- Dirt

2шт.
