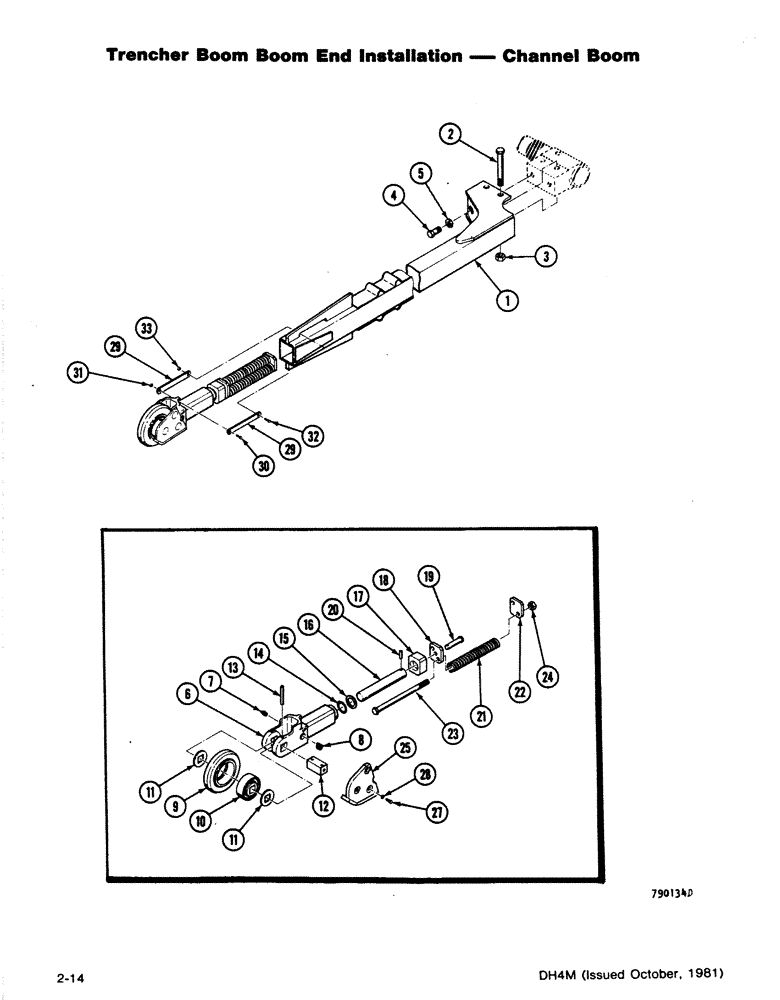

Запчасти Case DH4 (2-14) - TRENCHER BOOM, BOOM END INSTALLATION - CHANNEL BOOM (89) - TOOLS

1

BOOM ASSEMBLY - (See figure 2-28), Includes: Refs. 2-5

1шт.

2

113-2702

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- NC HH (3/4 x 6) Grade 8

2шт.

3

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

4

113-798

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- NC HH (3/4 x 1-1/2) Grade 8

2шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

H645358

END

BOOM END ASSEMBLY, Includes: Refs. 6-28

1шт.

6

H115204

CASTING

1шт.

7

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - Grease (includes cap)

1шт.

8

H114728

PLUG

- Bleed

1шт.

H531384

ROLLER

ASSEMBLY - Outer, Includes: Refs. 9, 10

1шт.

9

H115261

ROLLER

- Outer

1шт.

10

H747444

ROLLER BEARING,1.5" ID x 100 mm OD x 1.3125"

BEARING

1шт.

11

H117598

WASHER

- Special

2шт.

12

H381426

SHAFT

- Square, Includes: Ref. 13

1шт.

13

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

2шт.

14

H748871

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1шт.

15

H755009

RING

WASHER - Backup

1шт.

16

H115188

PLUNGER

ROD - Plunger

1шт.

17

H115196

BEARING

PLATE - Bearing

1шт.

18

H115238

VALVE SPRING

PLATE - Retainer, Includes: Refs. 19, 20

1шт.

19

H119172

CLEVIS COUPLING

PIN - Clevis

1шт.

20

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

21

H101998

VALVE SPRING

SPRING

2шт.

22

H119164

VALVE SPRING

PLATE - Retainer, Includes: Refs. 23, 24

1шт.

23

H90787

BOLT

BOLT - Special

2шт.

24

230-41110

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

25

H644088

SHOE (ASSY)

SKID SHOE - Left (shown)

1шт.

26

H644070

SHOE (ASSY)

SKID SHOE - Right (not shown), Includes: Refs. 27, 28

1шт.

27

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

29

H114934

DRAG LINK

LINK, Includes: Refs. 30-33

2шт.

30

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

31

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

1шт.

32

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

33

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

1шт.
