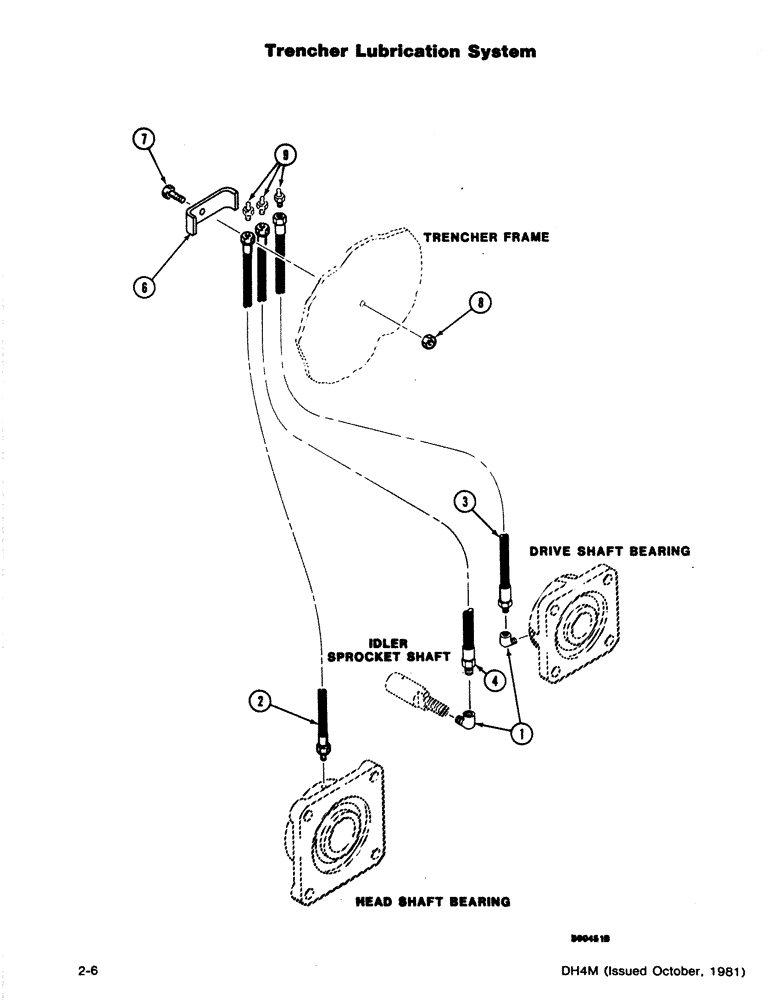

Запчасти Case DH4 (2-06) - TRENCHER LUBRICATION SYSTEM (89) - TOOLS

1

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

2шт.

2

H396101

HOSE

ASSEMBLY - Lube

1шт.

3

H396119

HOSE ASSY.

HOSE ASSEMBLY - Lube

1шт.

4

H396119

HOSE ASSY.

HOSE ASSEMBLY - Lube

1шт.

6

H45476

CLAMP

- 3-Hose, Includes: Refs. 7, 8

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC HH C/L (5/16)

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

3шт.
