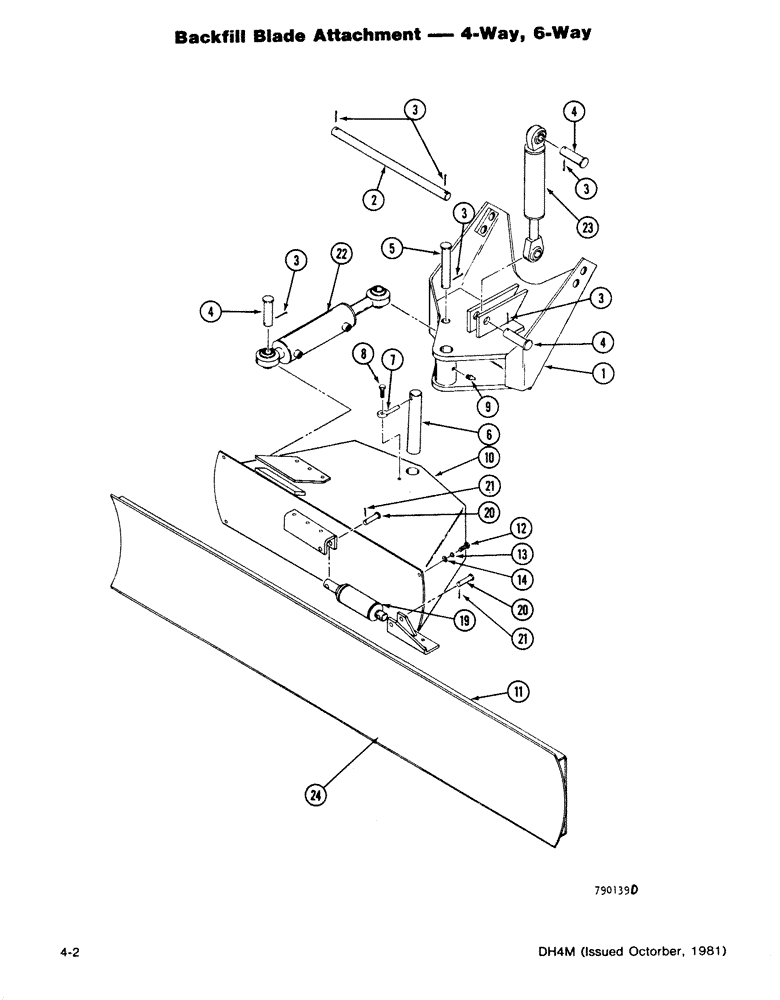

Запчасти Case DH4 (4-02) - BACKFILL BLADE ATTACHMENT - 4-WAY, 6-WAY (86) - DOZER

1

H638544

PIVOT

- Backfill Blade

1шт.

2

H383505

SHAFT

- Pivot

1шт.

3

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

6шт.

4

H70623

AXLE PIN

PIN - Celvis ( 1 x 3-1/2)

3шт.

5

H80440

AXLE PIN

PIN - Clevis (1 x 5-7/8)

1шт.

6

H369892

AXLE PIN

PIN - Pivot

1шт.

7

H36509

AXLE PIN

PIN - Retainer, Includes: Ref. 8

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - Grease (45 degrees)

1шт.

10

H638536

BLADE

BRACKET - Tilt, 4-Way (Not Shown)

1шт.

Used only with 4-Way Backfill Blade.

1шт.

11

H649350

HALF BLADE

BLADE - Backfill, 4-Way & 6-Way, Includes: Refs. 12-14

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

195-525

WASHER,3/8", SAE

4шт.

19

H621060

CYLINDER BLOCK

CYLINDER ASSEMBLY - Backfill Blade Tilt

1шт.

Used only with 6-Way Backfill Blade.

1шт.

20

H382416

CLEVIS PIN

PIN - Clevis (1/2 x 2)

2шт.

Used only with 6-Way Backfill Blade.

1шт.

21

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

Used only with 6-Way Backfill Blade.

1шт.

22

H641266

CYLINDER

ASSEMBLY - Backfill Blade Angle (See figure 4-20)

1шт.

23

H624528

STEERING CYLINDER

CYLINDER ASSEMBLY - Backfill Blade Lift (See figure 4-16)

1шт.

24

H209775

BLADE

- Lower (Weld On)

1шт.
