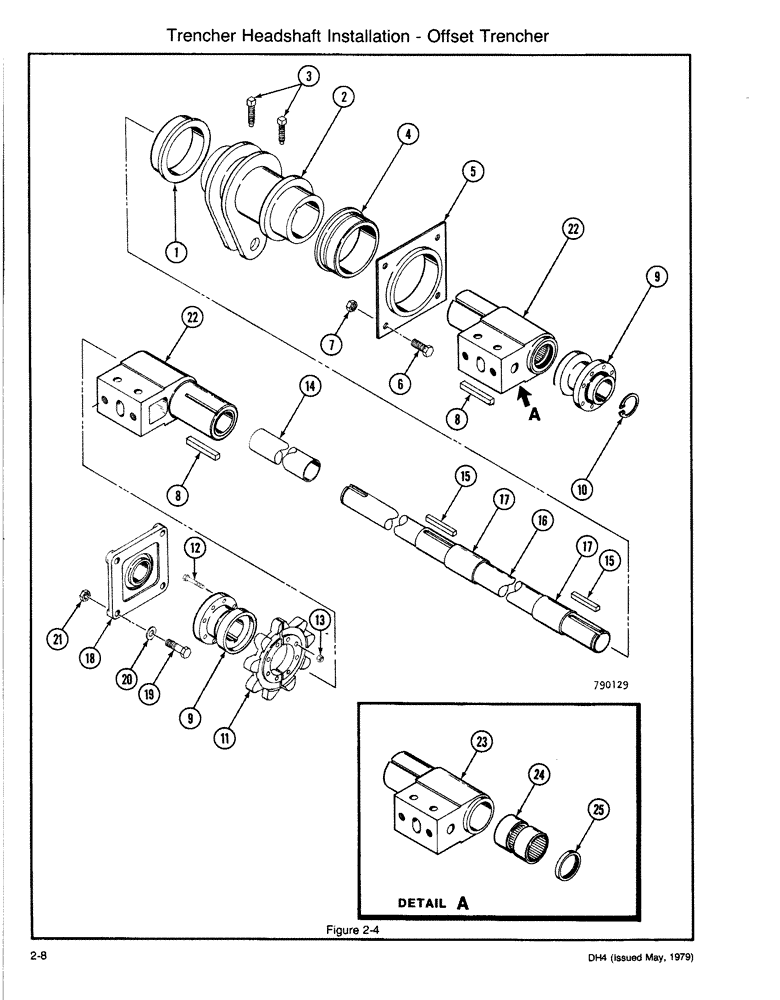

Запчасти Case DH4 (2-08) - TRENCHER HEADSHAFT INSTALLATION - OFFSET TRENCHER (89) - TOOLS

1

H374322

BUSHING

- Inner

1шт.

2

H641324

CRANK

- Boom Lift

1шт.

3

H33746

SET SCREW,1/2" - 20 x 2 1/4"

- Set

2шт.

4

H374330

BUSHING

- Outer

1шт.

5

H641308

PLATE ASSY.

DOUBLER - Outer, Includes: Refs. 6, 7

1шт.

6

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

7

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

8

H377366

KEY

- Square

2шт.

9

H216739

HUB CAP

HUB - Sprocket

2шт.

10

L59033

SNAP RING,#212, Ext

RING, Snap, #212, Ext

1шт.

11

H148569

DRIVE SPROCKET

SPROCKET - Split (50,000 lb. chain)

1шт.

Use with 50,000 lb. chainline

1шт.

11

H212811

DRIVE SPROCKET

SPROCKET - Split (70,000 lb. chain), Includes: Refs. 12, 13

1шт.

Use with 70,000 lb. chainline

1шт.

12

114-255

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

Hex, 3/8"-24 x 2 1/4", G8

8шт.

13

131-1133

NUT,3/8"-24, GC

NUT - NF Hex C/L (3/8)

8шт.

14

H374413

SPACER

1шт.

15

H115816

KEY

- Square (1/2 x 3 1/4)

2шт.

16

H642322

SHAFT ASSY.

SHAFT, Includes: Ref. 17

1шт.

17

H216820

SLEEVE CYLINDER

SLEEVE - Bearing

2шт.

18

H758292

BEARING

Includes: Refs. 19-21

1шт.

19

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

20

195-541

WASHER,5/8", SAE

- Flat (5/8)

4шт.

21

131-1130

LOCK NUT,5/8"-11, GA

NUT - Hex (5/8 NC - Lock)

4шт.

22

H643668

MOUNTING PARTS

PIVOT - Boom Mounting, Includes: Refs. 23-25

2шт.

23

H374918

PIVOT

CASTING - Pivot

1шт.

24

H748145

BEARING

2шт.

25

H754812

SEAL

SEAL

1шт.
