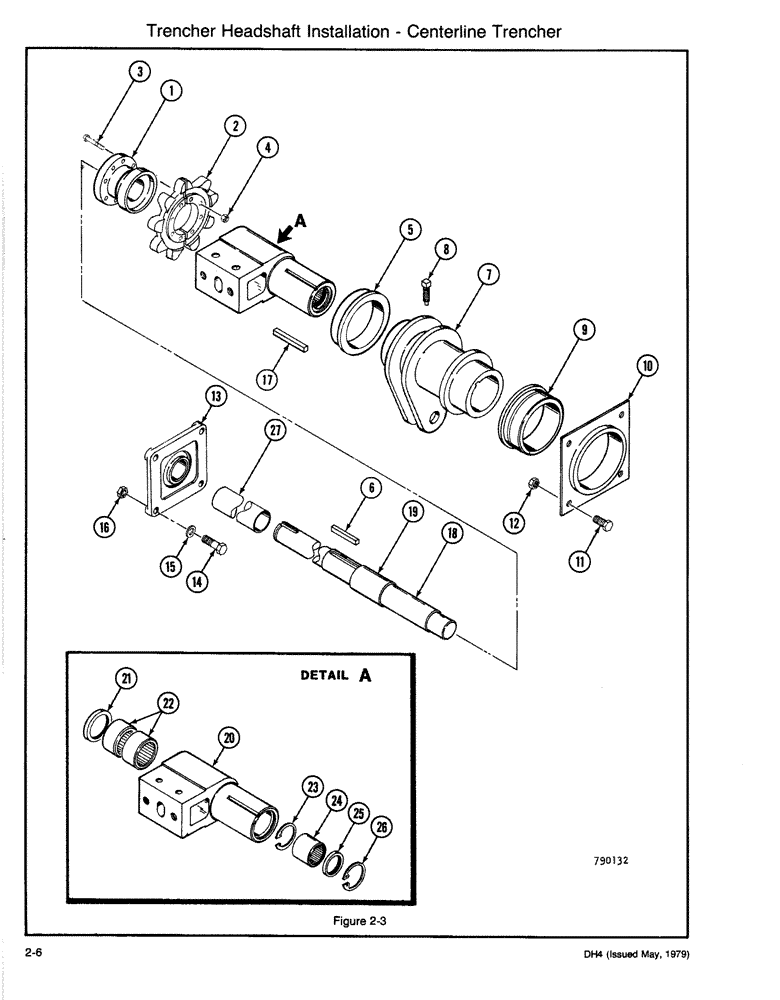

Запчасти Case DH4 (2-06) - TRENCHER HEADSHAFT INSTALLATION - CENTERLINE TRENCHER (89) - TOOLS

1

H216739

HUB CAP

HUB - Sprocket

1шт.

2

H148569

DRIVE SPROCKET

SPROCKET - Split

1шт.

Use with 50,000 lb. chainline

1шт.

2

H212811

DRIVE SPROCKET

SPROCKET - Split

1шт.

Use with 70,000 lb. chainline

1шт.

3

114-255

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

Hex, 3/8"-24 x 2 1/4", G8

8шт.

4

131-1133

NUT,3/8"-24, GC

NUT - NF Hex C/L (3/8)

8шт.

5

H374322

BUSHING

- Inner

1шт.

6

H115816

KEY

- Square (1/2 x 3-1/4)

1шт.

7

H641324

CRANK

- Boom Lift

1шт.

8

H33746

SET SCREW,1/2" - 20 x 2 1/4"

- Set

1шт.

9

H374330

BUSHING

- Outer

1шт.

10

H641308

PLATE ASSY.

DOUBLER - Outer, Includes: Refs. 11, 12

1шт.

11

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

12

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

13

H758292

BEARING

Includes: Refs. 14-16

1шт.

14

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

15

195-541

WASHER,5/8", SAE

- Flat (5/8)

4шт.

16

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

17

H377366

KEY

- Square

1шт.

18

H642314

SHAFT

Includes: Ref. 19

1шт.

19

H216820

SLEEVE CYLINDER

SLEEVE - Bearing

1шт.

H643668

MOUNTING PARTS

PIVOT - Boom Mounting, Includes: Refs. 20-26

1шт.

20

H374918

PIVOT

CASTING - Pivot

1шт.

21

H754812

SEAL

SEAL

1шт.

22

H748145

BEARING

2шт.

23

H758300

SNAP RING,2.562", Int, #256

Ring, Snap, 2.562", Int, #256

1шт.

24

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING

1шт.

25

H754804

OIL SEAL

SEAL

1шт.

26

D38743

SNAP RING,3.00", Int, #300

1шт.

27

H374413

SPACER

1шт.
