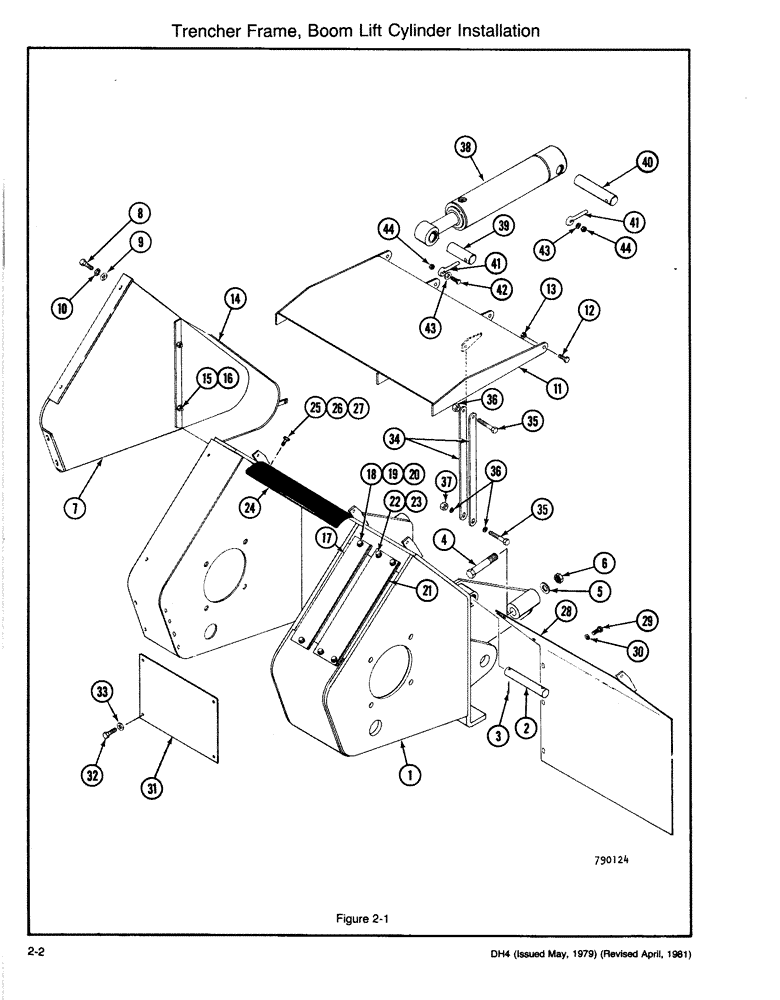

Запчасти Case DH4 (2-02) - TRENCHER FRAME, BOOM LIFT CYLINDER INSTALLATION (89) - TOOLS

1

H641407

FRAME

MAIN FRAME ASSEMBLY, Includes: Refs. 2-6

1шт.

2

H399345

MOUNTING PARTS

PIN - (1 x 6/42) Upper mounting

2шт.

3

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.

4

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Lower Mounting Hex, 3/4"-10 x 4 1/2", G5

2шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Flat (3/4) (Hardened)

2шт.

6

131-1131

LOCK NUT,3/4"-10, GA

NUT - NC HH C/L (3/4)

2шт.

7

H397497

SHIELD

- Chain, Includes: Refs. 8, 9

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

H641282

SHIELD

- Dirt, Includes: Refs. 12, 13

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC HH C/L (5/16)

4шт.

14

H643619

GUARD

- Chain, Includes: Refs. 15, 16

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

16

195-521

WASHER,5/16", SAE

- Flat (5/16)

3шт.

17

H374686

FLAP

- Dirt, Includes: Refs. 18-20

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

19

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC HH C/L (5/16)

2шт.

21

H374678

FLAP

- Dirt, Includes: Refs. 22, 23

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

23

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

24

H399337

PANEL

FLAP - Dirt, Includes: Refs. 25-27

1шт.

25

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

26

195-521

WASHER,5/16", SAE

- Flat (5/16)

6шт.

27

231-1445

NUT,5/16"-18, GB

NUT - Lock NC HH (5/16)

3шт.

28

H644963

SHIELD

- Dirt (Used on offset trencher only), Includes: Refs. 29, 30

1шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

30

195-525

WASHER,3/8", SAE

- Flat (3/8)

5шт.

31

H379941

PLATE

- Cover, Includes: Refs. 32, 33

1шт.

32

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

33

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

34

H374256

STRAP

- Shield, Includes: Refs. 35-37

2шт.

35

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

36

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

37

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC HH C/L (5/16)

2шт.

38

H530519

CYLINDER BLOCK

CYLINDER ASSEMBLY - Trencher Boom Lift (See figure 2-39), Includes: Refs. 39-44

1шт.

39

H138297

PIN

- Rod End Cylinder (1-1/4 x 3-3/4)

1шт.

40

H303396

AXLE PIN

PIN - Head End Cylinder (1-1/4 x 6)

1шт.

41

H313981

PIN

RETAINER - Pin

2шт.

42

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

43

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

44

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC HH C/L (5/16)

1шт.
